CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100700100

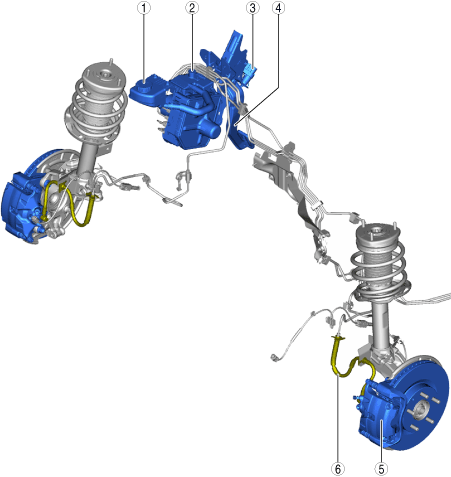

Vehicle Front Side

a30zzw00005138

1	Brake fluid (See BRAKE FLUID INSPECTION.) (See BRAKE FLUID AIR BLEEDING.) (See BRAKE FLUID REPLACEMENT.)
2	Brake fluid level sensor (See BRAKE FLUID LEVEL SENSOR INSPECTION.)
3	Brake switch (See BRAKE SWITCH INSPECTION.)
4	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION.)
5	Front brake (disc) (See FRONT BRAKE INSPECTION.) (See FRONT BRAKE DISC REMOVAL/INSTALLATION.) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION.) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION.) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY.) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION.) (See MAINTENANCE MODE.)
6	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION.)

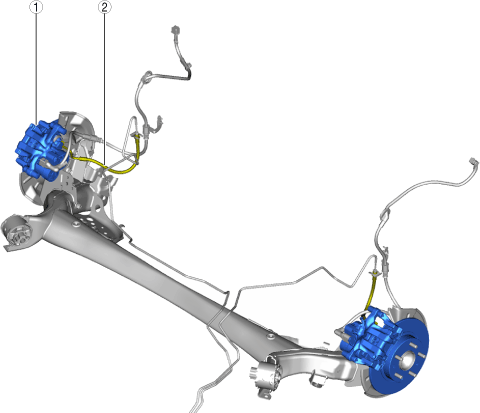

Vehicle Rear Side

a30zzw00005139

1	Rear brake (disc) (See REAR BRAKE INSPECTION.) (See REAR BRAKE DISC REMOVAL/INSTALLATION.) (See REAR BRAKE DISC PAD REMOVAL/INSTALLATION.) (See REAR BRAKE CALIPER REMOVAL/INSTALLATION.) (See REAR BRAKE CALIPER DISASSEMBLY/ASSEMBLY.) (See REAR BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION.) (See MAINTENANCE MODE.)
2	Rear brake hose (See REAR BRAKE HOSE REMOVAL/INSTALLATION.)
