MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY

id071100704700

Replacement Part

Bolt

Quantity: 1

Location of use: Magnetic clutch


Magnetic Clutch is Disassembled/Assembled with A/C Compressor Removed from Vehicle

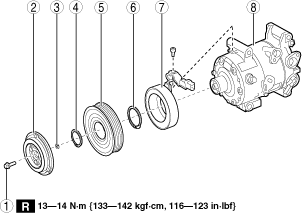

1.  Disassemble in the order indicated in the table.

am3zzw00026493

1
Bolt
(See Bolt removal/installation note.)
2
Pressure plate
3
Shim
4
Snap ring
5
A/C compressor pulley
6
Snap ring
7
Stator
8
A/C compressor body

2.  Assemble in the reverse order of disassembly.

3.  Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT.)


Bolt removal/installation note

1.  Connect the harness to the magnetic clutch connector.

am3zzw00028121

2.  Connect the battery (+) cable to the harness.

3.  Connect the battery (-) cable to the A/C compressor body.

Note
•  Energize the magnet clutch and fix the A / C compressor pulley and the pressure plate.

4.  Wrap the drive belt, which is no longer of use, tightly around the A/C compressor pulley.

am3zzw00028122

5.  Hold the drive belt in place with pliers.

6.  Remove/installation the bolt.


Magnetic Clutch is Disassembled/Assembled with A/C Compressor Equipped to Vehicle

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Wheel and tire (RF) (See WHEEL AND TIRE REMOVAL/INSTALLATION.)
(2)  Front over fender (RH) (See FRONT OVER FENDER REMOVAL/INSTALLATION.)
(3)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
(4)  Front under cover No.1 (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
(5)  Front deflector (RH) (See DEFLECTOR REMOVAL/INSTALLATION.)
(6)  Front splash shield (RH) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Bend back the front side of the front mudguard (RH) in the direction of the arrow shown in the figure.

ac30zw00005034

4.  Disconnect the magnetic clutch connector. (See A/C COMPRESSOR REMOVAL/INSTALLATION.)

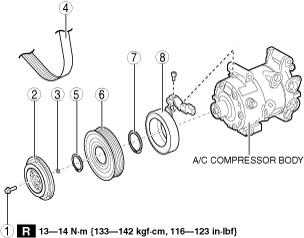

5.  Disassemble in the order shown in the figure.

am3zzw00026494

1
Bolt
(See Bolt removal/installation note.)
2
Pressure plate
3
Shim
4
Drive Belt
(See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
5
Snap ring
6
A/C compressor pulley
7
Snap ring
8
Stator
(See Stator removal/installation note.)

6.  Assemble in the reverse order of disassembly.

7.  Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT.)


Bolt removal/installation note

1.  Connect the harness to the magnetic clutch connector.

am3zzw00032044

2.  Connect the battery (+) cable to the harness.

3.  Connect the battery (-) cable to the A/C compressor body.

Note
•  Energize the magnet clutch and fix the A / C compressor pulley and the pressure plate.

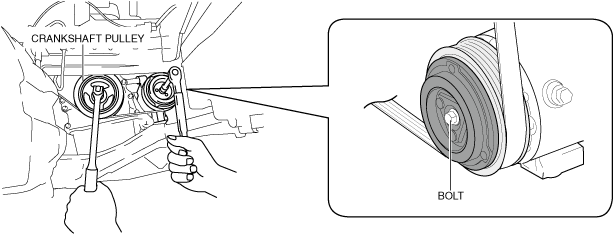

4.  Secure the crankshaft pulley.

am3zzw00037984

5.  Remove the bolt with the pressure plate secured.


Stator removal/installation note

1.  Remove the bolts A, B, and C.

am3zzw00028124

2.  Loose bolt D approx. 5 mm {0.2 in}.

3.  Tilt the A/C compressor centered around bolt D.

am3zzw00021315

4.  Remove the screw.

am3zzw00021316

5.  Remove the stator.
