FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000041800

1.  Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)
(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)
(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
(4)  Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION.)
(5)  Front door (See FRONT DOOR REMOVAL/INSTALLATION.)
(6)  Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION.)
(7)  Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION.)
(8)  Side step molding (See SIDE STEP MOLDING REMOVAL.)(See SIDE STEP MOLDING INSTALLATION.)
(9)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

3.  Remove the fasteners.

a30zzw00005494

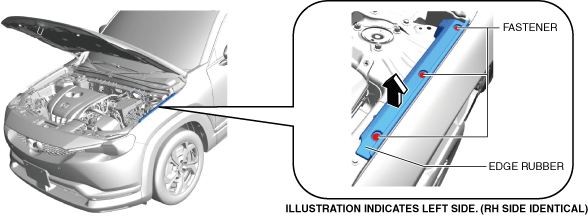

4.  Remove the edge rubber in the direction of the arrow shown in the figure.

5.  Remove the fasteners.

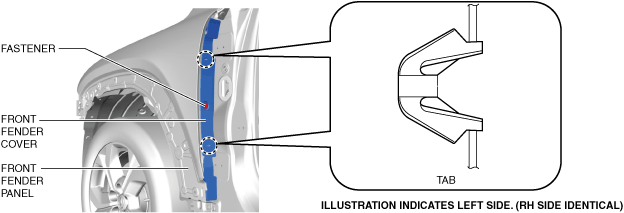

a30zzw00000489

6.  Remove the front fender cover while detaching the tabs.

7.  Remove the fasteners.

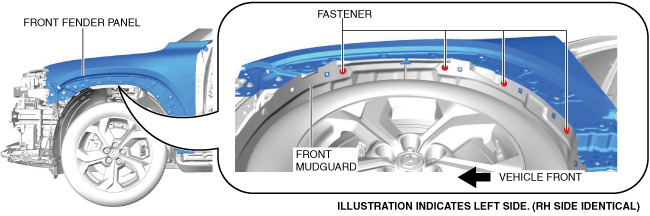

a30zzw00000490

8.  Partially peel back the front mudguard.

9.  Remove the bolts.

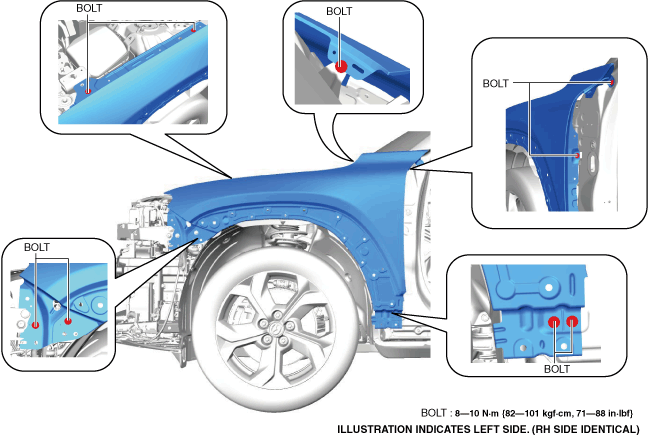

a30zzw00003031

10.  Remove the front fender panel.

•  When replacing the front fender panel, perform the following procedure:
1.  Remove the fastener.

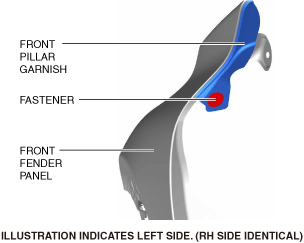

a30zzw00003032
2.  Remove the front pillar garnish.

11.  Install in the reverse order of removal.

12.  Perform the headlight aiming adjustment. (See HEADLIGHT AIMING.)

13.  Perform the front door adjustment. (See DOOR ADJUSTMENT.)

14.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

15.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

16.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
