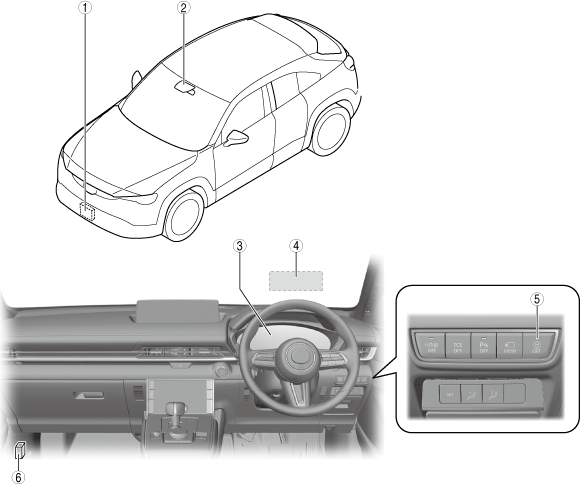

DISTANCE & SPEED ALERT (DSA) LOCATION INDEX

id152000100600

a30jjw00003306

1	Front radar sensor (See FRONT RADAR SENSOR REMOVAL/INSTALLATION.) (See FRONT RADAR SENSOR INSPECTION.) (See FRONT RADAR SENSOR AIMING.) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)
2	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) INSPECTION.) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD.)
3	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
4	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY INSPECTION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.)
5	i-ACTIVSENSE OFF switch (See i-ACTIVSENSE OFF SWITCH REMOVAL/INSTALLATION.) (See i-ACTIVSENSE OFF SWITCH INSPECTION.)
6	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.) (See VEHICLE CONTROL MODULE (VCM) INITIAL SETTING.)
