BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION

id094000700200

Warning

•  Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Remove the select lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(5)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(6)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(7)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(8)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(9)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(10)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(11)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(12)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(13)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(14)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(15)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(16)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(17)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(18)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL.) (See PASSENGER-SIDE LOWER PANEL INSTALLATION.)

(19)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(20)  knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(21)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(22)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(23)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(24)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(25)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(26)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(27)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(28)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(29)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(30)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(31)  Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(32)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(33)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(34)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(35)  Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(36)  Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)

(37)  Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION.)

(38)  Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

(39)  Dashboard (See DASHBOARD REMOVAL.) (See DASHBOARD INSTALLATION.)

(40)  Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.)

(41)  Cowl side woofer (See COWL SIDE WOOFER REMOVAL/INSTALLATION.)

(42)  Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

4.  Press the fuse block tabs in the direction of arrows (1) shown in the figure and move it in the direction of arrow (2) to detach the fuse block tab from the body control module (BCM) bracket.

a30zzw00002660

5.  Remove clips A and B.

6.  Remove the bolts.

a30zzw00002661

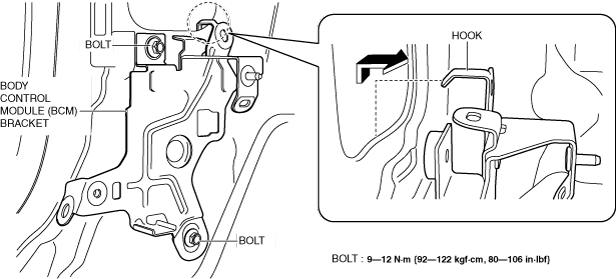

7.  Move the body control module (BCM) bracket in the direction of the arrow shown in the figure to detach the body control module (BCM) bracket hook from the body.

8.  Remove the body control module (BCM) bracket.

9.  Install in the reverse order of removal.
