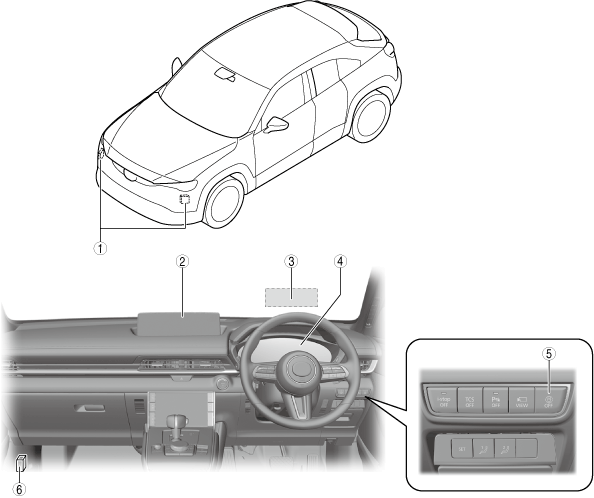

FRONT CROSS TRAFFIC ALERT (FCTA) SYSTEM LOCATION INDEX

id152000101800

a30jjw00003317

1	Front side radar sensor (See FRONT SIDE RADAR SENSOR REMOVAL/INSTALLATION.) (See FRONT SIDE RADAR SENSOR INSPECTION.) (See FRONT SIDE RADAR SENSOR AIMING.) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)
2	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.)
3	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY INSPECTION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.)
4	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
5	i-ACTIVSENSE OFF switch (See i-ACTIVSENSE OFF SWITCH REMOVAL/INSTALLATION.) (See i-ACTIVSENSE OFF SWITCH INSPECTION.)
6	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.) (See VEHICLE CONTROL MODULE (VCM) INITIAL SETTING.)
