VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION [L8, LF]

Warning

• A hot engine and intake-air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake-air system.

• Fuel line spills and leakage from the pressurized fuel system are dangerous. Fuel can ignite and cause serious injury or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure", while referring to the "BEFORE SERVICE PRECAUTIONS".

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)

4. Disconnect the quick release connector (Type A). (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [L8, LF].)

5. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF].)

6. Remove the service hole cover.

(1) Remove the front suspension tower bar (joint), (right side) and (left side). (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION.)

(2) Remove the wiper arm. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(3) Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

(4) Remove the side cowl grille. (See SIDE COWL GRILLE REMOVAL/INSTALLATION.)

(5) Remove the service hole cover. (See EGR VALVE REMOVAL/INSTALLATION [L8, LF].)

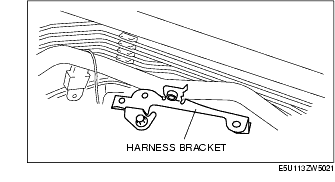

7. Remove the harness bracket.

8. Remove the under cover. (See TRANSVERSE MEMBER REMOVAL/INSTALLATION.)

9. Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION [L8, LF].)

10. Disconnect the quick release connector from the fuel distributor. (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [L8, LF].)

11. Remove the fuel distributor. (See FUEL INJECTOR REMOVAL/INSTALLATION [L8, LF].)

12. Move the clutch release cylinder slightly out of the way. (MT) (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION.)

13. Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)

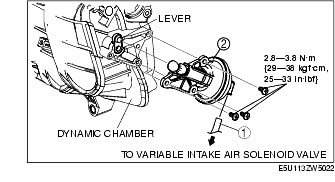

14. Remove in the order indicated in the table.

15. Install in the reverse order of removal.

Variable Intake Air Shutter Valve Actuator Removal Note

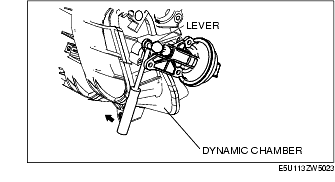

1. Disengage the variable intake air shutter valve actuator rod from the dynamic chamber on the opposite side using a suitable screwdriver or equivalent tool as shown in the figure.

Caution

• Do not remove the lever, otherwise the variable intake air shutter valve opening angle will deviate. To prevent removal of the lever when removing the variable intake shutter valve actuator, press the lever firmly to the dynamic chamber side by hand.

Variable Intake Air Shutter Valve Actuator Installation Note

1. Press the variable intake air shutter valve actuator rod into the dynamic chamber on the opposite side until a click is heard, and install it.
