REAR CROSSMEMBER REMOVAL/INSTALLATION

Caution

• Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before operations, remove the ABS wheel-speed sensor (axle side) and move the sensor away from the harnesses.

1. Remove the exhaust pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L8, LF].)

2. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

3. Remove the power plant frame. (See TRANSMISSION REMOVAL/INSTALLATION [M15M-D].) (See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)

4. Remove the rear drive shaft. (See REAR DRIVE SHAFT REMOVAL/INSTALLATION.)

5. Remove the rear differential. (See REAR DIFFERENTIAL REMOVAL/INSTALLATION.)

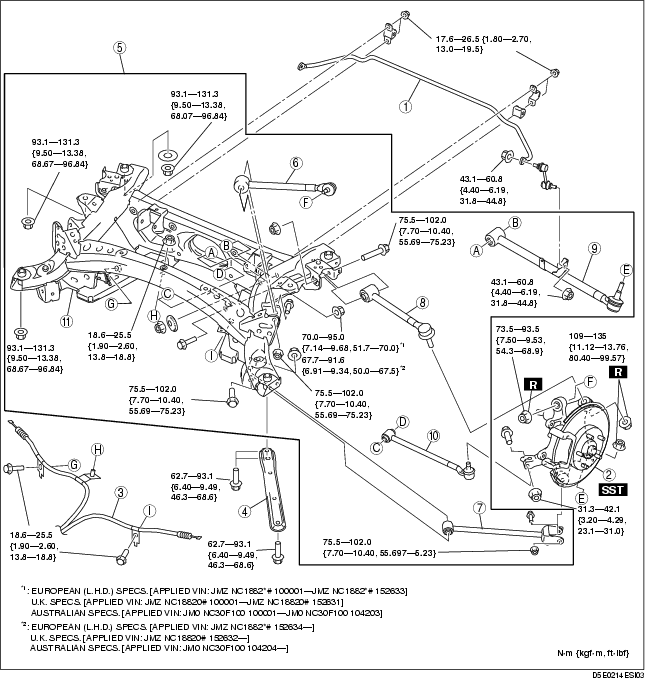

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

8. Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT.)

.

Rear Axle Component Removal Note

Note

• When removing the ball joints, the rear knuckle bushings may also come off. If they come off, replace the rear knuckle.

1. Support the knuckle using a jack.

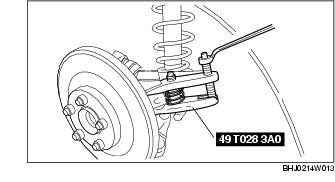

2. Using the SST, disconnect the rear trailing link (upper) ball joint.

3. Remove the rear trailing link (lower) outer bolt.

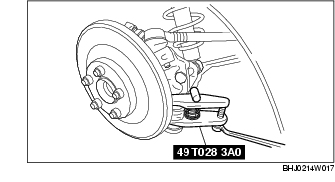

4. Using the SST, disconnect the rear lateral link (upper) ball joint.

5. Using the SST, disconnect the rear lateral link (lower) ball joint.

6. Remove the toe control link outer bolt.

7. Remove the shock absorber lower bolt.

8. Remove the rear axle component.

Rear Crossmember Component Removal Note

Warning

• Be sure that the crossmember component is securely supported by the jack.If not securely supported, the crossmember component could fall, resulting in serious injury or death, and damage to the vehicle.

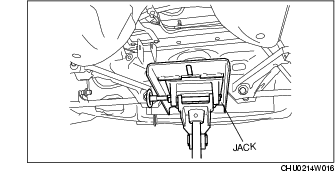

1. Support the rear crossmember with the jack, and remove the bolt.

2. Remove the rear crossmember component.
