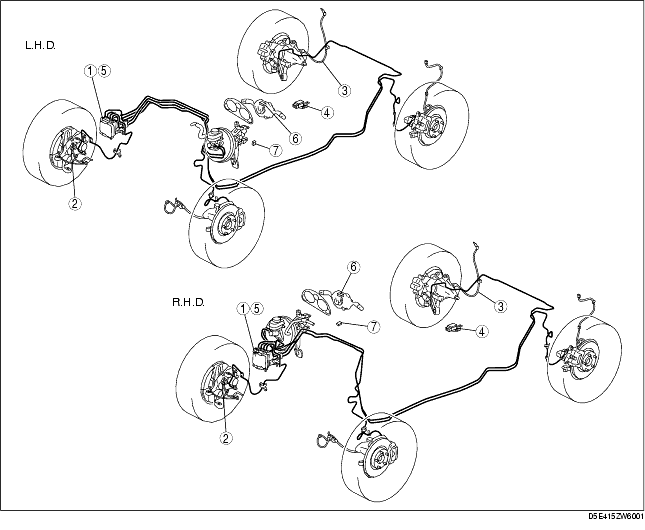

1
|
DSC HU/CM
(See DSC SYSTEM WIRING DIAGRAM.)
(See DSC SYSTEM INSPECTION.)
(See DSC CONFIGURATION.)
(See DSC HU/CM INSPECTION.)
|
|
2
|
Front ABS wheel-speed sensor
|
|
3
|
Rear ABS wheel-speed sensor
|
|
4
|
Combined sensor
(See COMBINED SENSOR INSPECTION.)
|
|
5
|
Brake fluid pressure sensor (built-into DSC HU/CM)
|
|
6
|
Steering angle sensor
|
|
7
|
DSC OFF switch
(See DSC OFF SWITCH INSPECTION.)
|
