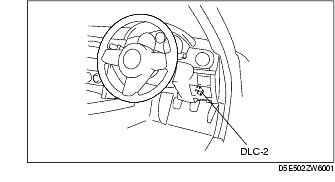

1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
3. Select the PID from the PID table.
4. Verify the PID data according to the directions on the M-MDS screen.
PID/DATA MONITOR AND RECORD function table
Monitor item (Definition)
Unit/Condition
Condition/Specification
Action
TCM terminal
BOO TCM
(Brake switch)
On/Off
• Brake pedal depressed: On
• Other: Off
Inspect the brake switch.
(See BRAKE SWITCH INSPECTION.)
N/A
DTCCNT
N/A
Indicates number of DTC
Check DTC.
(See DTC TABLE [SJ6A-EL].)
N/A
DWN SW
(Down switch)
On/Off
• Down shift at M range: On
• Other: Off
Inspect the selector lever component.
2F
ECT TCM
(ECT)
°C
Indicates ECT
• Inspect the ECT sensor.
• Inspect the PCM.
(See PCM INSPECTION [L8, LF].)
N/A
FDPDTC
(FREEZE FRAME DATA)
N/A
Indicates code of FREEZE FRAME DATA
N/A
N/A
GEAR_RA
(Gear ratio)
N/A
1GR: 3.538
2GR: 2.060
3GR: 1.404
4GR: 1.000
5GR: 0.713
6GR: 0.582
• R position: 3.168
Inspect following PIDs: OSS, SSA, SSB, SSC, SSD, SSE, SSF, SSG, THOP, TSS, VSS
N/A
GEAR_SEL
(Calculated gear range in TCM)
1/2/3/4/5/6
1GR: 1
2GR: 2
3GR: 3
4GR: 4
5GR: 5
6GR: 6
Inspect following PIDs: SSA, SSB, SSC, SSD, SSE, SSF, SSG, THOP, TSS, VSS
N/A
LPS
(Line pressure control solenoid)
A
• D range, 1GR (idle): 996 mA
• D range, 3GR: 656 mA
• R position: 719 mA
Inspect the line pressure control solenoid.
1E, 1R
MNL SW
(M range switch)
On/Off
• M range: On
• Other: Off
Inspect the selector lever component.
2G
OSS
(Output shaft speed)
RPM
• Vehicle speed 40 km/h {25 mph}: 3,800 RPM
• Indicates output shaft speed
Inspect the VSS.
2C, 2D
PNP_TCM
(Park/Neutral)
Drive/Neutral
• P, N position: Neutral
• D, M range or R position: Drive
Inspect the TR switch.
2K, 2M, 2N, 2O
RPM TCM
(Engine speed)
RPM
• Ignition switch ON: 0 rpm
• Idle: 700-800 rpm
• Inspect the CMP sensor.
• Inspect the PCM.
(See PCM INSPECTION [L8, LF].)
N/A
SS SW-
(Steering shift switch (down switch))
On/Off
M range
• Steering shift down switch on: On
• Other: Off
Inspect the steering shift switch.
2AB, 2AF
SS SW+
(Steering shift switch (up switch))
On/Off
M range
• Steering shift up switch on: On
• Other: Off
Inspect the steering shift switch.
2AB, 2AF
SSA
(Shift solenoid A)
On/Off
2GR, 3GR, 4GR, 5GR, 6GR: On
1GR: Off
Inspect the shift solenoid A.
1AF
SSB
(Shift solenoid B)
On/Off
1GR, 2GR, 6GR: On
3GR, 4GR, 5GR: Off
Inspect the shift solenoid B.
1AB
SSC
(Shift solenoid C)
On/Off
1GR, 2GR, 3GR: On
4GR, 5GR, 6GR: Off
Inspect the shift solenoid C.
1AA
SSD
(Shift solenoid D)
On/Off
5GR, 6GR: On
1GR, 2GR, 3GR, 4GR: Off
Inspect the shift solenoid D.
1S
SSE
(Shift solenoid E)
On/Off
1GR, 2GR, 3GR, 4GR: On
5GR, 6GR: Off
Inspect the shift solenoid E.
1V
SSF
(Shift solenoid F)
A
5GR, 6GR: 996 mA
1GR, 2GR, 3GR, 4GR: 199 mA
Inspect the shift solenoid F.
1O, 1Z
SSG
(Shift solenoid G)
A
1GR, 2GR, 3GR, 4GR: 996 mA
5GR, 6GR: 199 mA
Inspect the shift solenoid G.
1L, 1Y
TCCC
(TCC solenoid valve)
A
• TCC on: 996 mA
• Other: 199 mA
Inspect the TCC control solenoid.
1D, 1Q
TFT
(ATF temperature)
°C
• ATF temperature 20 °C {68 °F}: 20 °C
• ATF temperature 40 °C {104 °F}: 40 °C
• ATF temperature 60 °C {140 °F}: 60 °C
Inspect the TFT sensor.
1J, 1M
TFTV
(ATF temperature signal voltage)
V
• ATF temperature 20 °C {68 °F}: 3 V
• ATF temperature 40 °C {104 °F}: 2.14 V
• ATF temperature 60 °C {140 °F}: 1.38 V
Inspect the TFT sensor.
1J, 1M
THOP
(Throttle position)
%
• CTP: 20%
• WOT: 89.8%
• Inspect the TP sensor.
• Inspect the PCM.
(See PCM INSPECTION [L8, LF].)
N/A
TR
(TR switch)
R/N/D/P
• R position: R
• N position: N
• D range: D
• P position: P
Inspect the TR switch.
2K, 2M, 2N, 2O
TRD
(TR switch [D range])
On/Off
• D range: On
• Other ranges and all positions: Off
Inspect the TR switch.
2K
TRR
(TR switch [R position])
On/Off
• R position: On
• Other positions and all ranges: Off
Inspect the TR switch.
2M
TSS
(Turbine shaft speed)
RPM
• Idle: 700-800 rpm
• Vehicle speed 40 km/h {25 mph}: 3,800 RPM
Inspect the turbine sensor.
2A, 2B
UP SW
(Up switch)
On/Off
• Up shift at M range: On
• Other: Off
Inspect the selector lever component.
2J
VPWR_TCM
(Battery voltage)
V
Ignition switch at ON position: B+
• Inspect the ignition switch.
(See IGNITION SWITCH INSPECTION.)
• Inspect the battery.
(See BATTERY INSPECTION [L8, LF].)
1AD
VSS
(Vehicle speed)
KPH
• Vehicle speed 40 km/h {25 mph}: 40 KPH
• Indicates vehicle speed
Inspect the VSS.
2C, 2D
1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
3. Select the simulation items from the PID table.
4. Perform the simulation function, inspect the operations for each parts.
Simulation item table
