1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
4. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
5. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION.)

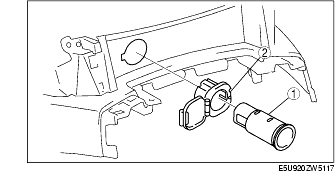

6. Remove in the order indicated in the table.
|
1
|
Accessory socket
|
|
2
|
Cap
(See Cap Removal Note.)
|
7. Install in the reverse order of removal.

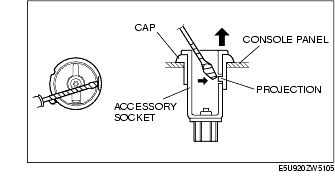

1. While pressing a tape-wrapped flathead screwdriver against the cap projection, pull the accessory socket outward.
1. While pressing the tabs, pull the cap outwards.
