HANDS-FREE TELEPHONE (HF/TEL) UNIT REMOVAL/INSTALLATION

id092000807100

1.  Remove the battery cover.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3.  Remove the following parts:

(1)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(2)  Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(3)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5)  Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

(6)  Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(7)  Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

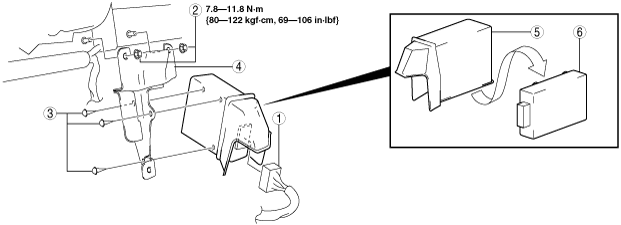

4.  Remove in the order indicated in the table.

amxzzw00002185

1	Connector
2	Nut
3	Screw
4	Bracket
5	Cover
6	HF/TEL unit

5.  Install in the reverse order of removal.
