CLUTCH LOCATION INDEX

id051000156300

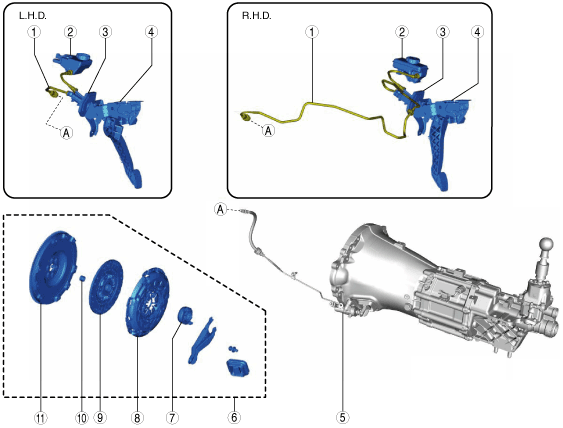

SKYACTIV-G 1.5

amxzzw00005137

1	Clutch pipe and hose (See CLUTCH FLUID LEAKAGE INSPECTION.) (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION.)
2	Reserve tank (See CLUTCH FLUID INSPECTION.) (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING.)
3	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION.)
4	Clutch pedal (See CLUTCH PEDAL INSPECTION.) (See CLUTCH PEDAL REMOVAL/INSTALLATION.) (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION.) (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION.)
5	Clutch release cylinder (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION.)
6	Clutch unit (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 1.5].)
7	Clutch release collar (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 1.5].) (See CLUTCH RELEASE COLLAR INSPECTION.)
8	Clutch cover (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 1.5].) (See CLUTCH COVER INSPECTION.)
9	Clutch disc (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 1.5].) (See CLUTCH DISC INSPECTION.)
10	Pilot bearing (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 1.5].) (See PILOT BEARING INSPECTION.)
11	Flywheel (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 1.5].) (See FLYWHEEL INSPECTION.)

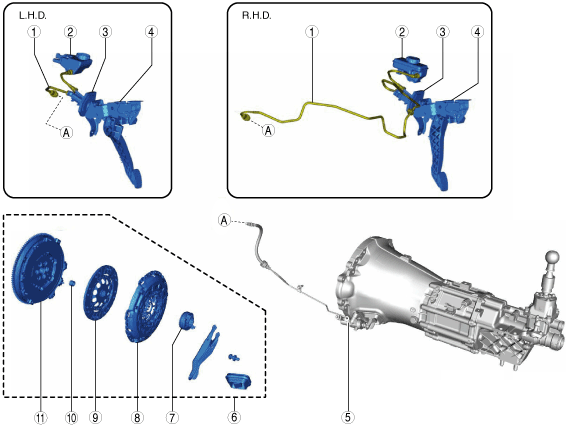

SKYACTIV-G 2.0

amxzzw00005138

1	Clutch pipe and hose (See CLUTCH FLUID LEAKAGE INSPECTION.) (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION.)
2	Reserve tank (See CLUTCH FLUID INSPECTION.) (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING.)
3	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION.) (See CLUTCH STROKE SENSOR REMOVAL/INSTALLATION.)
4	Clutch pedal (See CLUTCH PEDAL INSPECTION.) (See CLUTCH PEDAL REMOVAL/INSTALLATION.) (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION.) (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION.)
5	Clutch release cylinder (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION.)
6	Clutch unit (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
7	Clutch release collar (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CLUTCH RELEASE COLLAR INSPECTION.)
8	Clutch cover (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CLUTCH COVER INSPECTION.)
9	Clutch disc (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CLUTCH DISC INSPECTION.)
10	Pilot bearing (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See PILOT BEARING INSPECTION.)
11	Dual-mass flywheel (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See DUAL-MASS FLYWHEEL INSPECTION.)
