TRUNK LID OPENER SWITCH INSPECTION

id091400516400


Vehicle Interior

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(4)  Remove the trunk lid opener switch (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)

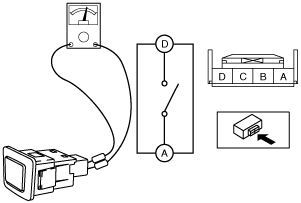

3.  Verify the continuity of trunk lid opener switch terminals A and D.

am3uuw00011805
amxuuw00004206

•  If not as indicated in the table, replace the trunk lid opener switch.


Vehicle Exterior


With energy-absorbing form

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(2)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)
(4)  Rear splash shield (See REAR SPLASH SHIELD REMOVAL/INSTALLATION.)
(5)  Rear bumper stay (See REAR BUMPER STAY REMOVAL/INSTALLATION.)
(6)  Rear bumper retainer No.1 (See REAR BUMPER RETAINER No.1 REMOVAL/INSTALLATION.)
(7)  Rear bumper (See REAR BUMPER REMOVAL.)(See REAR BUMPER INSTALLATION.)
(8)  Trunk lid opener switch (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)

3.  Verify the continuity of trunk lid opener switch terminals A and B.

ardjjw00005039

•  If not as indicated in the table, replace the trunk lid opener switch.
amxuuw00004207


Without energy-absorbing form

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the license plate light (RH) (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.)

3.  Remove the trunk lid opener switch (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)

4.  Verify the continuity of trunk lid opener switch terminals A and B.

ardjjw00005039

•  If not as indicated in the table, replace the trunk lid opener switch.
amxuuw00004207
