CENTER PANEL No.1 REMOVAL/INSTALLATION
id091700564400
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)
-
- (2) Shift lever knob (MT)
-
- (3) Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (4) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
-
- (5) Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)
-
- (6) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (7) Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)
-
- (8) Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)
-
- (9) Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (10) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (11) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (12) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (13) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
-
- (14) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
-

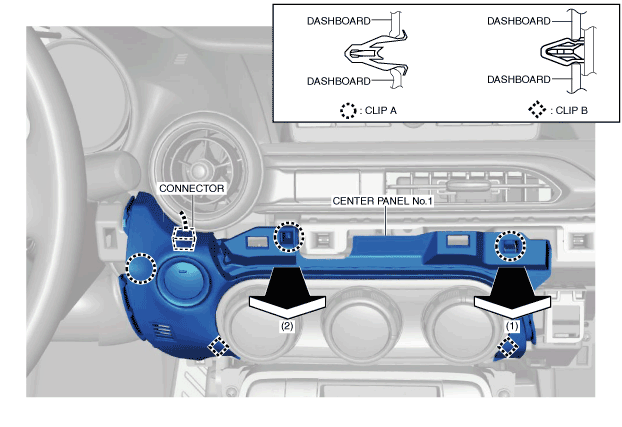

3. Move the center panel No.1 in the order of arrows (1) and (2) shown in the figure, and detach clips A and B from the dashboard.
4. Disconnect the connector.
5. Remove the center panel No.1.
6. Remove the push button start when replacing the center panel No.1. (See PUSH BUTTON START REMOVAL/INSTALLATION.)
7. Install in the reverse order of removal.
