WOOFER REMOVAL/INSTALLATION

id092000805200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(5)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(6)  Shift lever knob (MT)

(7)  Shift panel compartment (See SHIFT PANEL REMOVAL/INSTALLATION.)

(8)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(9)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(10)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(11)  Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

(12)  Front console compartment (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(13)  Front cup holder bracket (See FRONT CUP HOLDER BRACKET REMOVAL/INSTALLATION.)

(14)  Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION.)

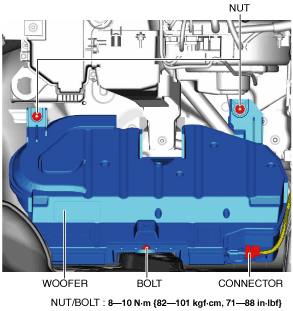

3.  Disconnect the connector.

amxuuw00002934

4.  Remove the nuts.

5.  Remove the bolt.

6.  Remove the woofer.

7.  Install in the reverse order of removal.
