FUEL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0114zg002600


Outline

•  A multiple hole type fuel injector has been adopted to provide high fuel injection accuracy and improved fuel efficiency and output.
•  A high pressure fuel pump has been adopted to increase the fuel pressure and improve the vaporization characteristic of the fuel.

Structural View

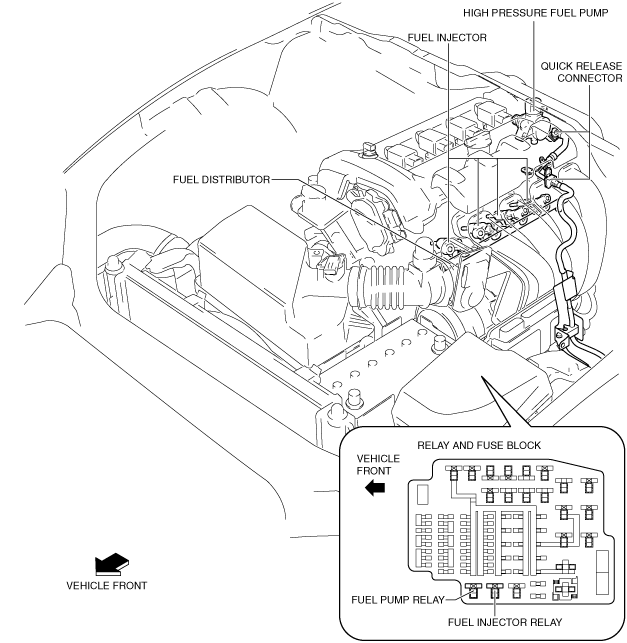

Engine compartment side

amxzzn00001077

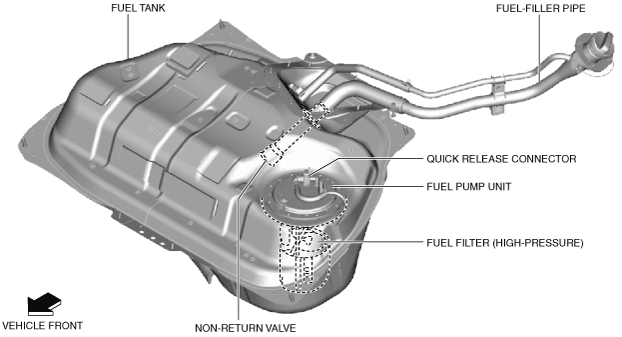

Fuel tank side

amxzzn00001078


System Diagram

amxzzn00001079

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Returnless fuel system
(See RETURNLESS FUEL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Fuel pump unit
(See FUEL PUMP UNIT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Fuel tank
(See FUEL TANK [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Fuel pump relay
(See FUEL PUMP RELAY [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Fuel injector relay
(See FUEL INJECTOR RELAY [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Quick release connector (fuel system)
(See QUICK RELEASE (FUEL SYSTEM) CONNECTOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Pressure regulator control pressure
(kPa {kgf/cm2, psi})
Approx. 450 {4.59, 65.3}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
45.0 {11.9, 9.90}


Fuel type

Fuel

Research Octane Number
Premium unleaded fuel
(Conforming to EN 228 and within E10)*
95 or above

*  :Europe
