CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100800100

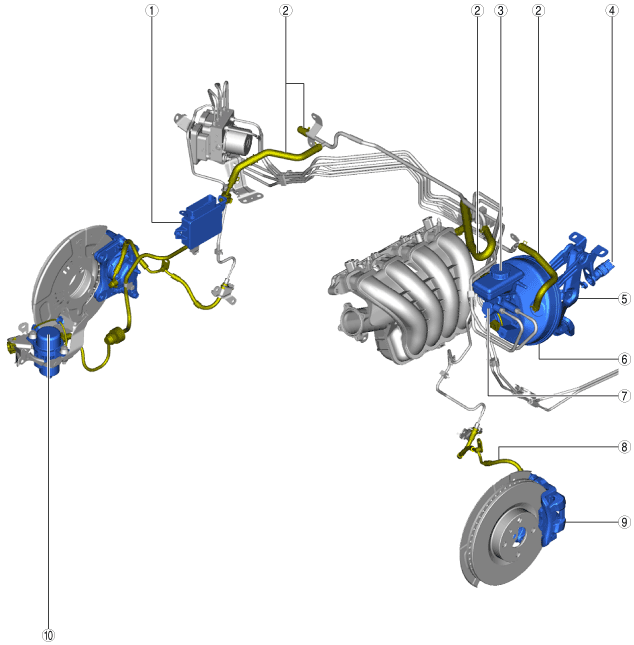

Vehicle Front Side (L.H.D.)

amxuuw00005047

1	EVP control unit (See EVP CONTROL UNIT INSPECTION.) (See EVP CONTROL UNIT REMOVAL/INSTALLATION [L.H.D.].)
2	Vacuum line (See VACUUM LINE INSPECTION.) (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D.].)
3	Brake fluid (See BRAKE FLUID INSPECTION.) (See BRAKE FLUID AIR BLEEDING.)
4	Brake switch (See BRAKE SWITCH INSPECTION.)
5	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].)
6	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See VACUUM SENSOR 1 INSPECTION.)
7	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE FLUID LEVEL SENSOR INSPECTION.)
8	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].)
9	Front brake (disc) (See FRONT BRAKE INSPECTION.) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].)
10	Electric vacuum pump (See ELECTRIC VACUUM PUMP INSPECTION.) (See ELECTRIC VACUUM PUMP REMOVAL/INSTALLATION.)

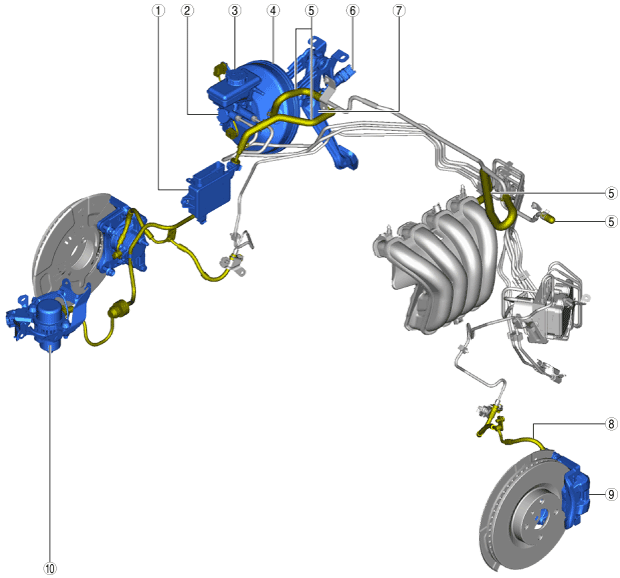

Vehicle Front Side (R.H.D.)

ardjjw00006117

1	EVP control unit (See EVP CONTROL UNIT INSPECTION.) (See EVP CONTROL UNIT REMOVAL/INSTALLATION [R.H.D.].)
2	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].) (See BRAKE FLUID LEVEL SENSOR INSPECTION.)
3	Brake fluid (See BRAKE FLUID INSPECTION.) (See BRAKE FLUID AIR BLEEDING.)
4	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].) (See VACUUM SENSOR 1 INSPECTION.)
5	Vacuum line (See VACUUM LINE INSPECTION.) (See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D.].)
6	Brake switch (See BRAKE SWITCH INSPECTION.)
7	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)
8	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].)
9	Front brake (disc) (See FRONT BRAKE INSPECTION.) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY [WITH SINGLE PISTON FLOATING CALIPER].) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].)
10	Electric vacuum pump (See ELECTRIC VACUUM PUMP INSPECTION.) (See ELECTRIC VACUUM PUMP REMOVAL/INSTALLATION.)

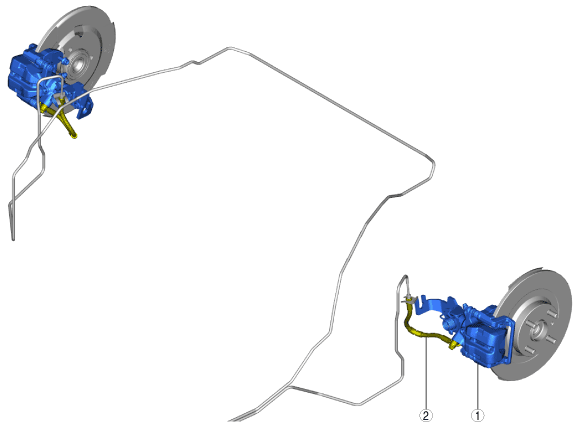

Vehicle Rear Side

amxuuw00005048

1	Rear brake (disc) (See REAR BRAKE INSPECTION.) (See REAR BRAKE DISC REMOVAL/INSTALLATION.) (See REAR BRAKE DISC PAD REMOVAL/INSTALLATION.) (See REAR BRAKE CALIPER REMOVAL/INSTALLATION.) (See REAR BRAKE CALIPER DISASSEMBLY/ASSEMBLY.) (See REAR BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION.)
2	Rear brake hose (See REAR BRAKE HOSE REMOVAL/INSTALLATION.)
