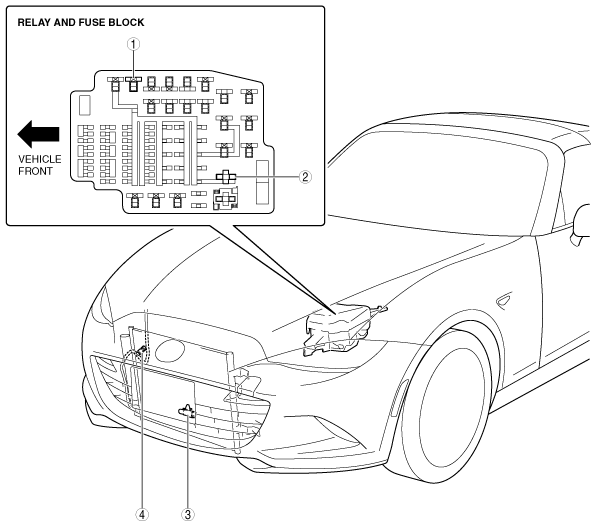

amxuuw00003931
HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]
id0740a1803600
amxuuw00003931
|
|
1
|
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
|
|
2
|
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
|
|
3
|
Ambient temperature sensor
|
|
4
|
Refrigerant pressure sensor
|
L.H.D.
amxzzw00003090
|
|
5
|
Cabin temperature sensor
|
|
6
|
Solar radiation sensor
|
|
7
|
Airflow mode actuator
|
|
8
|
Air intake actuator
|
|
9
|
Air mix actuator
|
|
10
|
Climate control unit
|

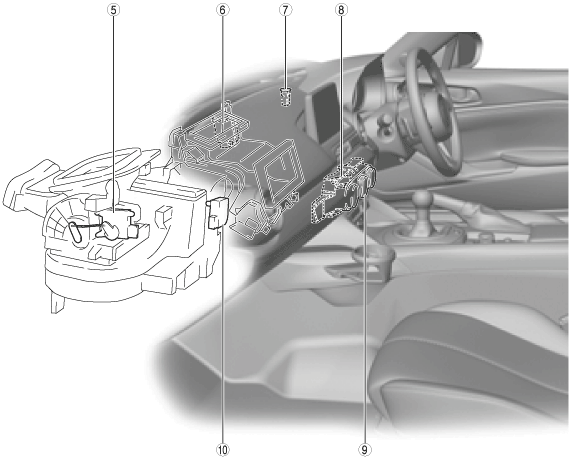

R.H.D.
ardjjw00005503
|
|
5
|
Air intake actuator
|
|
6
|
Airflow mode actuator
|
|
7
|
Solar radiation sensor
|
|
8
|
Cabin temperature sensor
|
|
9
|
Climate control unit
|
|
10
|
Air mix actuator
|
