CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1807800

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MT)

(3)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(5)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(7)  Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

(8)  Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(9)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(10)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(11)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(12)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(13)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(14)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(15)  Center panel No.1 (See CENTER PANEL No.1 REMOVAL/INSTALLATION.)

(16)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

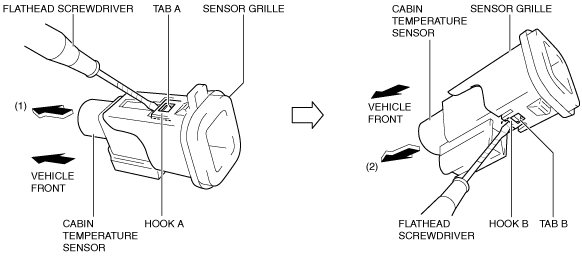

3.  While lifting hook A of the sensor grille using a tape-wrapped flathead screwdriver, pull the cabin temperature sensor in the direction of arrow (1) shown in the figure and detach hook A of the sensor grille from tab A of the cabin temperature sensor.

amxzzw00003091

4.  While lifting hook B of the sensor grille using a tape-wrapped flathead screwdriver, pull the cabin temperature sensor in the direction of arrow (2) shown in the figure and detach hook B of the sensor grille from tab B of the cabin temperature sensor.

5.  Remove the cabin temperature sensor.

6.  Remove the aspirator. (See AIR DIST UNIT DISASSEMBLY/ASSEMBLY.)

7.  Install in the reverse order of removal.
