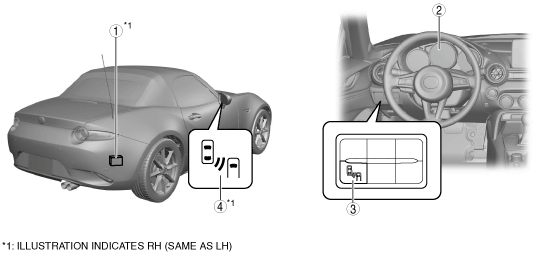

BLIND SPOT MONITORING (BSM) SYSTEM LOCATION INDEX

id152000000900

amxuuw00003692

1	Blind spot monitoring (BSM) control module (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION.) (See BLIND SPOT MONITORING (BSM) BRACKET REMOVAL/INSTALLATION.) (See BLIND SPOT MONITORING (BSM) CONTROL MODULE INSPECTION.)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER OPERATION RECORD.) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
3	Blind spot monitoring (BSM) switch (See BLIND SPOT MONITORING (BSM) SWITCH REMOVAL/INSTALLATION.) (See BLIND SPOT MONITORING (BSM) SWITCH INSPECTION.)
4	Blind spot monitoring (BSM) warning light (See BLIND SPOT MONITORING (BSM) WARNING LIGHT REMOVAL/INSTALLATION.) (See BLIND SPOT MONITORING (BSM) WARNING LIGHT INSPECTION.)
