INTAKE-AIR SYSTEM LOCATION INDEX [L8, LF]

id0113a3801700

Except 6MT

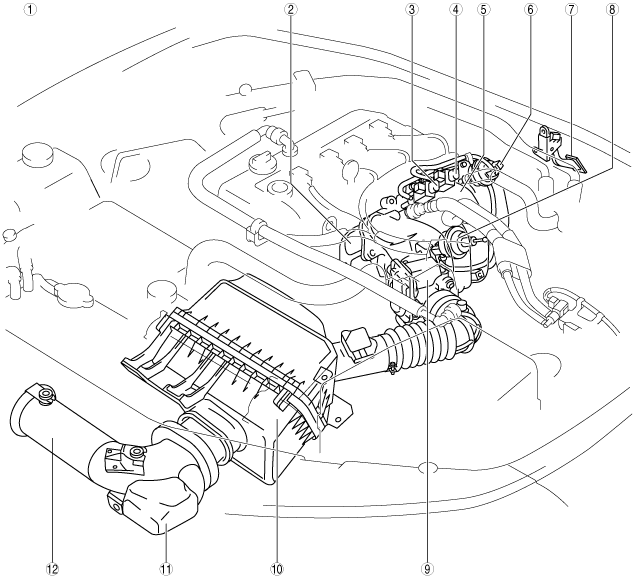

amxzzw00002037

1	Intake-air system (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)
2	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].) (See INTAKE MANIFOLD VACUUM INSPECTION [L8, LF])
3	Variable tumble solenoid valve (See VARIABLE TUMBLE SOLENOID VALVE REMOVAL/INSTALLATION [L8, LF].) (See VARIABLE TUMBLE SOLENOID VALVE INSPECTION [L8, LF].)
4	Variable intake air solenoid valve (See VARIABLE INTAKE AIR SOLENOID VALVE REMOVAL/INSTALLATION [L8, LF].) (See VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION [L8, LF].)
5	Dynamic chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)
6	Variable tumble shutter valve actuator (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION [L8, LF].) (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION [L8, LF].)
7	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [L8, LF].)
8	Variable intake air shutter valve actuator (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION [L8, LF].)
9	Throttle body (See THROTTLE BODY INSPECTION [L8, LF].)
10	Air cleaner (See AIR CLEANER ELEMENT INSPECTION [L8, LF].)
11	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)
12	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)

6MT

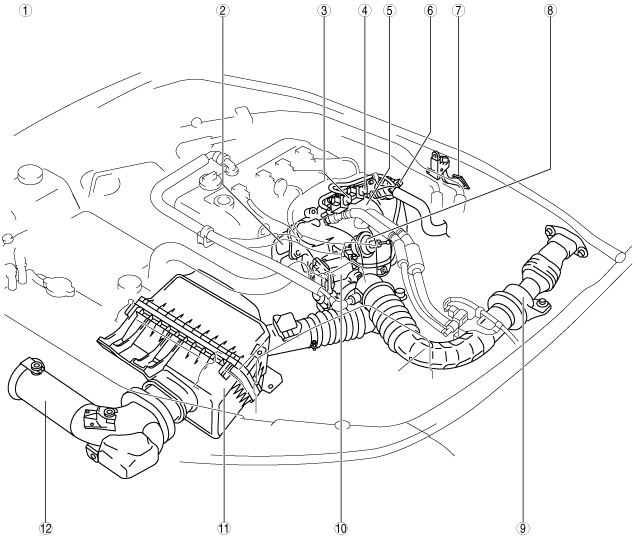

amxzzw00000788

1	Intake-air system (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)
2	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].) (See INTAKE MANIFOLD VACUUM INSPECTION [L8, LF])
3	Variable tumble solenoid valve (See VARIABLE TUMBLE SOLENOID VALVE REMOVAL/INSTALLATION [L8, LF].) (See VARIABLE TUMBLE SOLENOID VALVE INSPECTION [L8, LF].)
4	Variable intake air solenoid valve (See VARIABLE INTAKE AIR SOLENOID VALVE REMOVAL/INSTALLATION [L8, LF].) (See VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION [L8, LF].)
5	Dynamic chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)
6	Variable tumble shutter valve actuator (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION [L8, LF].) (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION [L8, LF].)
7	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [L8, LF].)
8	Variable intake air shutter valve actuator (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION [L8, LF].)
9	Resonance chamber No. 2 (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)
10	Throttle body (See THROTTLE BODY INSPECTION [L8, LF].)
11	Air cleaner (See AIR CLEANER ELEMENT INSPECTION [L8, LF].)
12	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)
