CONTROL SYSTEM LOCATION INDEX [MZ-CD 1.6 (Y6)]

id0140b2804100

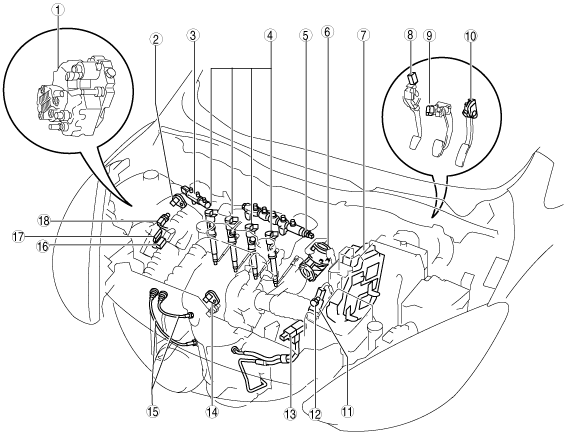

am2zzw00004111

1	Supply pump (See SUPPLY PUMP ADAPTIVE VALUE RESET [MZ-CD 1.6 (Y6)].)
2	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
3	Fuel temperature sensor (See FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
4	Fuel injector (See INJECTOR TIMING OFFSET VALUE RESET [MZ-CD 1.6 (Y6)].)
5	Fuel pressure sensor (See FUEL PRESSURE SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
6	EGR valve (EGR valve position sensor) (See EGR VALVE ADAPTIVE VALUE RESET [MZ-CD 1.6 (Y6)].) (See EGR VALVE POSITION SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
7	PCM (See PCM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See PCM INSPECTION [MZ-CD 1.6 (Y6)].) (See PCM CONFIGURATION [MZ-CD 1.6 (Y6)].)
8	CPP switch (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZ-CD 1.6 (Y6)].)
9	BPP switch (See BRAKE PEDAL POSITION (BPP) SWITCH INSPECTION [MZ-CD 1.6 (Y6)].)
10	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
11	MAF/IAT sensor (See MASS AIR FLOW (MAF) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
12	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
13	Diesel particulate filter differential pressure sensor (See DIESEL PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See DIESEL PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
14	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
15	Catalyst exhaust gas temperature sensor (See CATALYST EXHAUST GAS TEMPERATURE SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
16	MAP sensor (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [MZ-CD 1.6 (Y6)].)
17	Throttle position sensor (See INTAKE SHUTTER VALVE ADAPTIVE VALUE RESET [MZ-CD 1.6 (Y6)].)
18	IAT sensor No.2 (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 INSPECTION [MZ-CD 1.6 (Y6)].)
