CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

id081100800100

3HB, 5HB

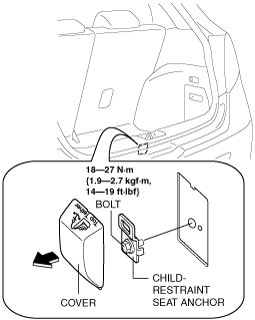

1.  Remove the cover.

am2zzw00000468

2.  Remove the bolt.

3.  Remove the child-restraint seat anchor.

4.  Install in the reverse order of removal.

4SD

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION [4SD].)

(4)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION [4SD].)

2.  Remove the bolt.

am2zzw00005127

3.  Remove the child-restraint seat anchor.

4.  Install in the reverse order of removal.
