THEFT-DETERRENT HORN REMOVAL/INSTALLATION
id091400525100
5HB
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].) (See REAR SEAT BACK REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)
- (3) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (4) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (5) Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

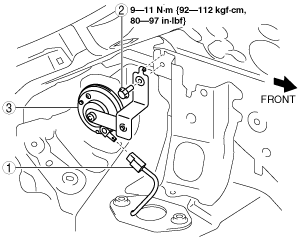

3. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Bolt
|
|
3
|
Theft-deterrent siren
|
4. Install in the reverse order of removal.
4SD
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (3) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION [4SD].)
- (4) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (5) Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

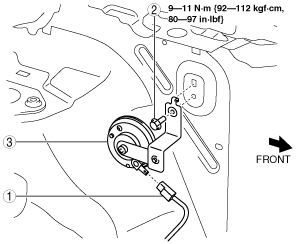

3. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Bolt
|
|
3
|
Theft-deterrent siren
|
4. Install in the reverse order of removal.
