INTAKE-AIR SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0113q1003300

Outline

• A vacuum pump has been adopted which supplies stable vacuum to the power brake unit.

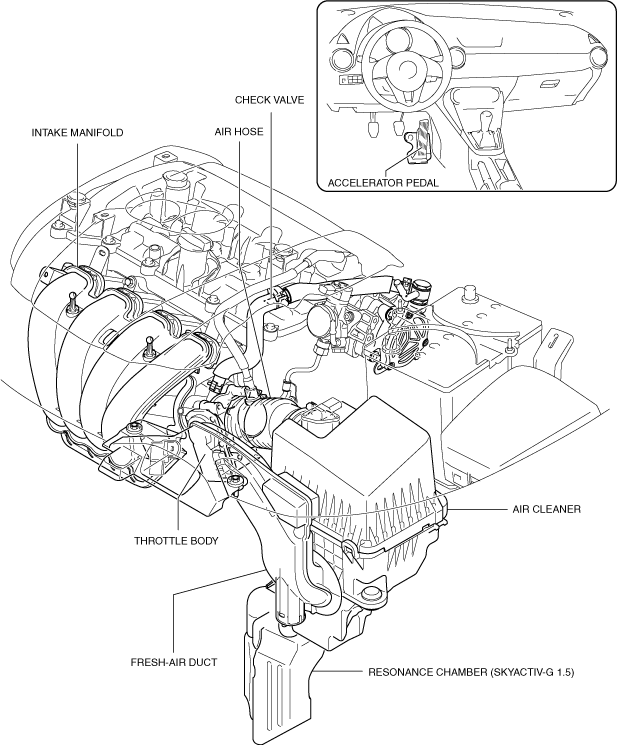

Structural View

am2zzn00004927

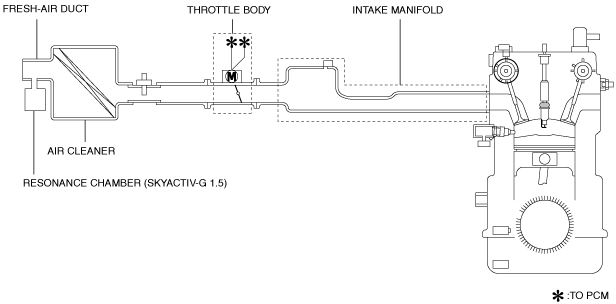

System Diagram

am2zzn00003120

Vacuum Hose Routing Diagram

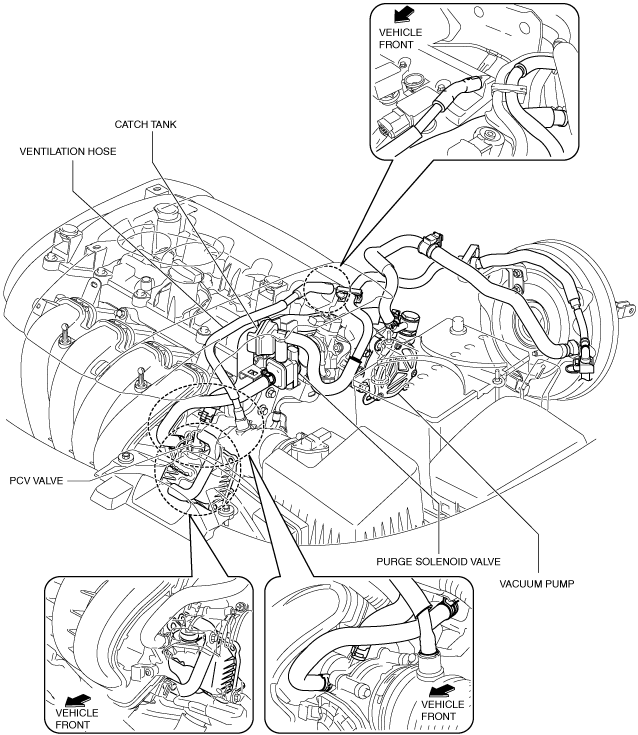

L.H.D.

am2zzn00003121

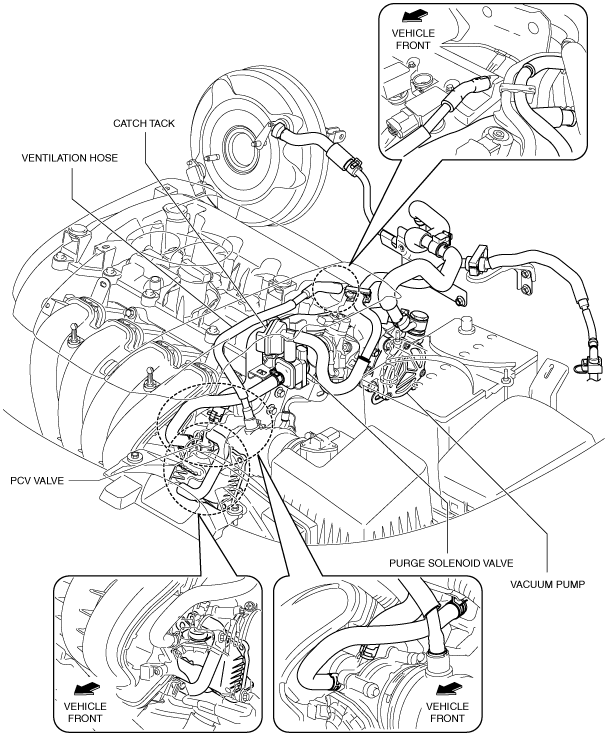

R.H.D.

am2zzn00003122

Structure

• The intake air system consists of the following parts:

Part name	Reference
Fresh-air duct	(See FRESH-AIR DUCT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Resonance chamber (SKYACTIV-G 1.5)	(See RESONANCE CHAMBER [SKYACTIV-G 1.5].)
Air cleaner	(See AIR CLEANER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Throttle body	(See THROTTLE BODY [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Vacuum pump	(See VACUUM PUMP.)
Intake manifold	(See INTAKE MANIFOLD [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Accelerator pedal	(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
