LIQUID CRYSTAL DISPLAY (LCD)

id092200103500


Outline

•  The LCD displays vehicle information in the instrument cluster.

Function/Construction

•  The instrument cluster configures the indication of the LCD based on the signals sent via CAN communication from the related modules, and displays it.

Information displayed in LCD

•  Information displayed in the LCD is listed in the following table. Refer to the referenced section for details of the displayed information.

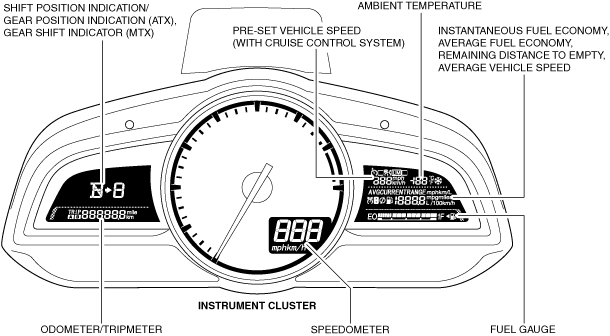

Digital speedometer type

am2zzn00004660

Display information

Reference
Speedometer
(See SPEEDOMETER.)
Fuel gauge
(See FUEL GAUGE.)
Odometer/tripmeter
(See ODOMETER/TRIPMETER.)
Instantaneous fuel economy, average fuel economy, remaining distance to empty, average vehicle speed
(See TRIP COMPUTER INFORMATION SYSTEM.)
Ambient temperature
(See AMBIENT TEMPERATURE DISPLAY.)
Shift position indication/gear position indication (ATX)
Gear shift indicator (MTX)
(See SHIFT POSITION INDICATION [CW6A-EL].)
(See GEAR POSITION INDICATION [CW6A-EL].)
(See SHIFT POSITION INDICATION [EW6A-EL].)
(See GEAR POSITION INDICATION [EW6A-EL].)
(See GEAR SHIFT INDICATOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
(See GEAR SHIFT INDICATOR [SKYACTIV-D 1.5].)
Pre-set vehicle speed (with cruise control system)
(See CRUISE CONTROL SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
(See CRUISE CONTROL SYSTEM [SKYACTIV-D 1.5].)

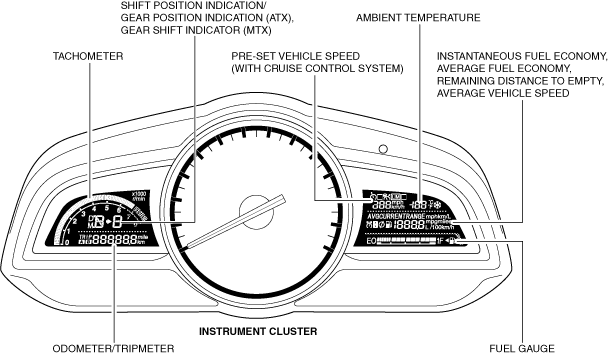

Analog speedometer type (with tachometer)

am2zzn00004661

Display information

Reference
Tachometer
(See TACHOMETER.)
Fuel gauge
(See FUEL GAUGE.)
Odometer/tripmeter
(See ODOMETER/TRIPMETER.)
Instantaneous fuel economy, average fuel economy, remaining distance to empty, average vehicle speed
(See TRIP COMPUTER INFORMATION SYSTEM.)
Ambient temperature
(See AMBIENT TEMPERATURE DISPLAY.)
Shift position indication/gear position indication (ATX)
Gear shift indicator (MTX)
(See SHIFT POSITION INDICATION [CW6A-EL].)
(See GEAR POSITION INDICATION [CW6A-EL].)
(See SHIFT POSITION INDICATION [EW6A-EL].)
(See GEAR POSITION INDICATION [EW6A-EL].)
(See GEAR SHIFT INDICATOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
(See GEAR SHIFT INDICATOR [SKYACTIV-D 1.5].)
Pre-set vehicle speed (with cruise control system)
(See CRUISE CONTROL SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
(See CRUISE CONTROL SYSTEM [SKYACTIV-D 1.5].)

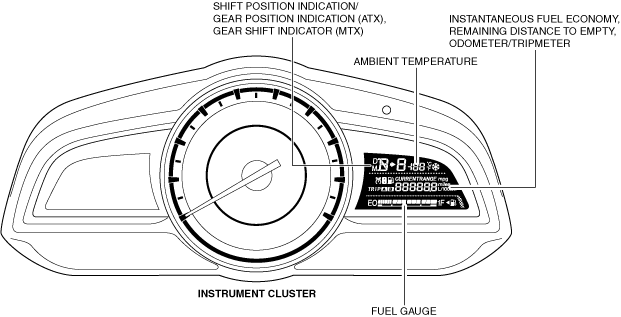

Analog speedometer type (without tachometer)

am2zzn00004662

Display information

Reference
Fuel gauge
(See FUEL GAUGE.)
Odometer/tripmeter
(See ODOMETER/TRIPMETER.)
Instantaneous fuel economy, remaining distance to empty
(See TRIP COMPUTER INFORMATION SYSTEM.)
Ambient temperature
(See AMBIENT TEMPERATURE DISPLAY.)
Shift position indication/gear position indication (ATX)
Gear shift indicator (MTX)
(See SHIFT POSITION INDICATION [CW6A-EL].)
(See GEAR POSITION INDICATION [CW6A-EL].)
(See SHIFT POSITION INDICATION [EW6A-EL].)
(See GEAR POSITION INDICATION [EW6A-EL].)
(See GEAR SHIFT INDICATOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
(See GEAR SHIFT INDICATOR [SKYACTIV-D 1.5].)


LCD display content data reset

Caution
•  Previously stored data cannot be recovered after it is reset. When resetting data, explain the reset items to the customer and reset the data after obtaining their consensus.
•  The following information displayed on the LCD can be reset all at once. Refer to the Workshop Manual [INSTRUMENT CLUSTER DATA RESET PROCEDURE] for the resetting procedure.
―  Average fuel economy
―  Average vehicle speed
―  TRIP value


Fail-safe

•  Not applicable
