TIMING CHAIN REMOVAL/INSTALLATION [ZY]

id0110008010c0

Warning

•  Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.

•  Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”. (See BEFORE SERVICE PRECAUTION [ZY].)

1.  Disconnect the negative battery cable.

2.  Remove the ignition coil. (See IGNITION COIL REMOVAL/INSTALLATION [ZY].)

3.  Remove the front tire (RH).

4.  Remove the drive belt. (See DRIVE BELT REPLACEMENT [ZY].)

5.  Remove the crankshaft position (CKP) sensor connector. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [ZY].)

6.  Remove the generator. (See GENERATOR REMOVAL/INSTALLATION [ZY].)

7.  Remove the water pump. (See WATER PUMP REMOVAL/INSTALLATION [ZY].)

8.  Remove the A/C pipe bracket.

9.  Remove in the order indicated in the table.

10.  Install in the reverse order of removal.

11.  Start the engine.

12.  Inspect the following and adjust them if necessary.

(1)  Amount of engine oil (See ENGINE OIL LEVEL INSPECTION [ZY].)

(2)  Pulley and belt for runout and contact

(3)  Ignition timing and idle speed. Verify the amount of CO and HC. (See IGNITION TIMING INSPECTION [ZY].) (See IDLE SPEED ADJUSTMENT [ZY].) (See IDLE MIXTURE INSPECTION [ZY].)

13.  Perform a road test and verify that there is no abnormal vibration or noise.

dda110zw4019

1	Cylinder head cover (See Cylinder Head Cover Installation Note.)
2	Crankshaft installation bolt (See Crankshaft Pulley Installation Bolt Removal Note.) (See Crankshaft Pulley Installation Bolt Installation Note.)
3	Crank pulley
4	Idler
5	Drive belt auto tensioner
6	No.3 engine mount (See No.3 Engine Mount Removal Note.) (See No.3 Engine Mount Installation Note.)
7	Oil level gauge pipe
8	Engine front cover (See Engine Front Cover Removal Note.) (See Engine Front Cover Installation Note.)
9	Chain tensioner (See Chain Tensioner Removal Note.)
10	Chain tensioner arm
11	Chain guide
12	Timing chain (See Timing Chain Removal Note.) (See Timing Chain Installation Note.)
13	Crankshaft sprocket
14	Key

Crankshaft Pulley Installation Bolt Removal Note

1.  Fix the crankshaft pulley using the SSTs.

adj2215w0022

No.3 Engine Mount Removal Note

1.  Support the engine using the either of the following procedures.

Caution

•  When supporting the housing, verify that any switches and wiring harnesses are not caught.

•  Support the clutch housing (MTX) or the converter housing (ATX) using a jack with a wood slab of appropriate size inserted to secure the housing.

aaxjjw00003911

•  Support the engine using an engine jack.

am3zzw00004622

Engine Front Cover Removal Note

1.  Remove the front oil seal using a flathead screwdriver.

adj2215e0042

Chain Tensioner Removal Note

1.  Push down the link plate of the timing chain tensioner using a thin flathead screwdriver (precision screwdriver), and release the plunger lock.

ada2224e034

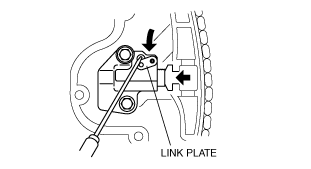

2.  Push back the plunger slowly in the direction shown in the figure with the link plate still pushed down.

ada2224e011

3.  Free the link plate with the plunger still pressed down.

4.  Release the pressure slightly from the plunger, and move the plunger back and forth 2—3 mm{0.08—0.11 in}.

5.  Insert an approx. 1.5 mm {0.06 in} wire or the paper clip where the link plate hole and the tensioner body hole overlap to fix the link plate and lock the plunger.

ada2224e005

Timing Chain Removal Note

1.  Rotate the crankshaft clockwise and align the key groove of the crankshaft sprocket to the timing mark, and then position the No.1 cylinder to TDC.

ada2215w016

2.  Align the timing marks on the camshaft sprockets so that they form a straight line in alignment with the upper horizontal surface of the cylinder head.

ada2224e142

3.  Remove the timing chain.

Timing Chain Installation Note

1.  Align the key groove of the crank sprocket to the timing mark, and then position the No.1 cylinder to TDC.

ada2215e005

2.  Align the timing marks on the camshaft sprockets so that they form a straight line in alignment with the upper horizontal surface of the cylinder head.

ada2224w013

3.  Install the timing chain.

4.  After installing the chain adjuster, remove the wire or the paper clip installed to the chain tensioner, and apply tension to the timing chain. (Remove the installed stopper when installing the new chain tensioner.)

ada2211e001

5.  Verify that there is no slack on the timing chain, and then verify that each sprocket is positioned in the proper place again.

6.  Rotate the crankshaft clockwise twice, and then inspect the valve timing.

Engine Front Cover Installation Note

1.  Apply the silicon sealant to the engine front cover as shown in the figure.

adj2224e1102

Caution

•  Install the engine front cover within 10 min of applying the silicone sealant.

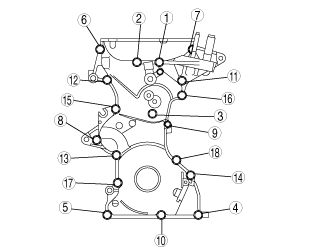

2.  Tighten the engine front cover installation bolts in the order shown in the figure.

adj2224e111

Bolt number	Tightening torque
1—6, 8, 10, 12—15, 17, 18	18.6—25.5 N·m {1.90—2.60 kgf·m, 13.8—18.8 ft·lbf}
7, 11, 16	37.2—51.9 N·m {3.80—5.29 kgf·m, 27.5—38.2 ft·lbf}
9	7.8—10.8 N·m {80—110 kgf·cm, 69.1—95.5 in·lbf}

3.  Apply clean engine oil to the new front oil seal.

4.  Insert the front oil seal into the engine front cover by hand.

5.  Tap in the front oil seal using the SST and a hammer.

ada2220e002

ame2215w0102

No.3 Engine Mount Installation Note

1.  Install the No.3 engine mount, and then temporarily tighten the installation bolts and nuts.

2.  Tighten the installation bolts in the order shown in the figure.

adj2224w010

Crankshaft Pulley Installation Bolt Installation Note

1.  Fix the crankshaft pulley using the SSTs.

adj2215w0022

2.  Tighten the crankshaft pulley installation bolt.

Cylinder Head Cover Installation Note

1.  Apply silicon sealant as shown in the figure.

ada2212e006

2.  Tighten the cylinder head cover installation bolts in the order shown in the figure.

dda110w4003
