1. Remove the front fog light. (Vehicles with front fog lights) (SeeFRONT FOG LIGHT REMOVAL/INSTALLATION [VEHICLES WITH STANDARD TYPE BUMPER].) (SeeFRONT FOG LIGHT REMOVAL/INSTALLATION [VEHICLES WITH SPORT TYPE BUMPER].)
2. Remove the radiator grille.(SeeRADIATOR GRILLE REMOVAL/INSTALLATION.)
3. Disassemble in the order indicated in the table.
Standard type
|
1
|
Front fog light hole cover A
|
|
2
|
Front fog light hole cover B
|
|
3
|
Screw A
|
|
4
|
Panel
|
|
5
|
Front bumper mesh
|
|
6
|
Screw B
|
|
7
|
Radiator grille reinforcement
|
|
8
|
Screw C
|
|
9
|
Retainer A
|
|
10
|
Clip
|
|
11
|
Fastener
|
|
12
|
Retainer B (SeeRetainer B Removal Note.)
|
|
13
|
Ornament
|
|
14
|
Hook cover
|
|
15
|
Front bumper fascia
|
4. Assemble in the reverse order of disassembly.

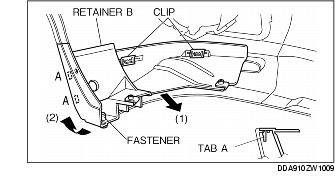

1. Remove the clip.
2. Remove the fastener.
3. While moving retainer B in the direction of the arrow (1), remove it in the direction of the arrow (2) and detach tabs A.
