DTC B1008:11 [BCM]

id0902f5340000

Malfunction Location

• Windshield wiper switch circuit malfunction

Detection Condition

• Short to ground in wiring harness between windshield wiper switch (windsheld wiper INT) and BCM

Possible Causes

• DTC inspection is performed with windshield wiper switch on

• Connection malfunction with connector

• Short to ground in wiring harness between windshield wiper switch terminal E and BCM terminal 6S

• Windshield wiper switch malfunction

• BCM malfunction

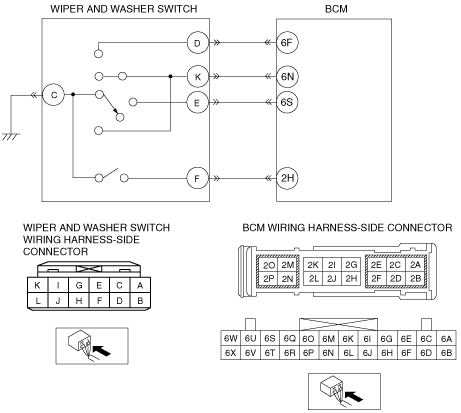

System Wiring Diagram

am2zzw00002298

Diagnostic Procedure

Step

Inspection

Action

1

PERFORM DTC INSPECTION

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the windshield wiper switch off.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is DTC B1008:11 displayed?

Yes

Go to the next step.

No

DTC troubleshooting completed.

2

VERIFY WIPER AND WASHER SWITCH CONNECTOR CONDITION

•  Disconnect the negative battery cable.

•  Disconnect the wiper and washer switch connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

3

VERIFY WINDSHIELD WIPER SWITCH CONDITION

•  Remove the windshield wiper switch.
(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

•  Inspect the windshield wiper switch.
(See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.)

•  Is the windshield wiper switch normal?

Yes

Go to the next step.

No

Replace the wiper and washer switch, then go to the final step.

(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

4

VERIFY BCM CONNECTOR CONDITION

•  Disconnect the BCM connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

5

VERIFY WIRING HARNESS BETWEEN WINDSHIELD WIPER SWITCH AND BCM FOR SHORT TO GROUND

•  Inspect for continuity between the BCM terminal 6S and body ground.

•  Is there continuity?

Yes

Repair or replace the related wiring harness, then go to the final step.

No

Go to the next step.

6

VERIFY TROUBLESHOOTING COMPLETED

•  Connect all the connectors.

•  Connect the battery cable.

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the windshield wiper switch off.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is DTC B1008:11 displayed?

Yes

Replace the BCM.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.
