DTC B1175:13 [BCM]

id0902f5340700

Malfunction Location

• Front door latch switch (driver's side) circuit malfunction

Detection Condition

• Open circuit in wiring harness between front door latch switch in front door latch and lock actuator (driver's side) and BCM

Possible Causes

• DTC inspection is performed with front door latch switch (driver's side) on

• Connection malfunction with connector

• Open circuit in wiring harness between front door latch and lock actuator (driver's side) terminal B and BCM terminal 7I

• Front door latch and lock actuator (driver's side) malfunction

• BCM malfunction

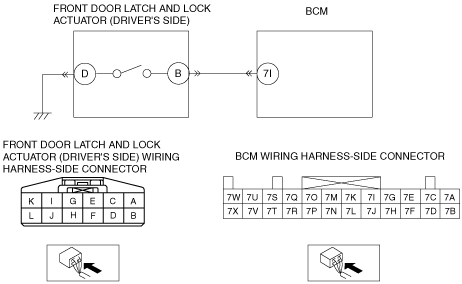

System Wiring Diagram

am2zzw00002302

Diagnostic Procedure

Step

Inspection

Action

1

PERFORM DTC INSPECTION

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Close the front driver's door. (Front door latch switch off)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is DTC B1175:13 displayed?

Yes

Go to the next step.

No

DTC troubleshooting completed.

2

VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (DRIVER'S SIDE) CONNECTOR CONDITION

•  Disconnect the negative battery cable.

•  Disconnect the front door latch and lock actuator (driver's side) connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

3

VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (DRIVER'S SIDE) GROUND CIRCUIT CONDITION

•  Inspect for continuity between front door latch and lock actuator (driver's side) terminal D and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the related wiring harness, then go to the final step.

4

VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (DRIVER'S SIDE) CONDITION

•  Remove the front door latch and lock actuator (driver's side).
(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

•  Inspect the front door latch and lock actuator (driver's side).
(See FRONT DOOR LOCK ACTUATOR INSPECTION.)

•  Is the front door latch and lock actuator (driver's side) normal?

Yes

Go to the next step.

No

Replace the front door latch and lock actuator (driver's side), then go to the final step.

(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

5

VERIFY BCM CONNECTOR CONDITION

•  Disconnect the BCM connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

6

VERIFY WIRING HARNESS BETWEEN FRONT DOOR LATCH AND LOCK ACTUATOR (DRIVER'S SIDE) AND BCM FOR OPEN CIRCUIT

•  Inspect for continuity between front door latch and lock actuator (driver's side) terminal B and BCM terminal 7I.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the related wiring harness, then go to the final step.

7

VERIFY TROUBLESHOOTING COMPLETED

•  Connect all the connectors.

•  Connect the battery cable.

•  Clear DTCs using the M-MDS
(See CLEARING DTC [BCM].)

•  Close the front driver's door. (Front door latch switch off)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is DTC B1175:13 displayed?

Yes

Replace the BCM.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	PERFORM DTC INSPECTION • Clear DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Close the front driver's door. (Front door latch switch off) • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is DTC B1175:13 displayed?	Yes	Go to the next step.
1		No	DTC troubleshooting completed.
2	VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (DRIVER'S SIDE) CONNECTOR CONDITION • Disconnect the negative battery cable. • Disconnect the front door latch and lock actuator (driver's side) connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to the final step.
3	VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (DRIVER'S SIDE) GROUND CIRCUIT CONDITION • Inspect for continuity between front door latch and lock actuator (driver's side) terminal D and body ground. • Is there continuity?	Yes	Go to the next step.
3		No	Repair or replace the related wiring harness, then go to the final step.
4	VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (DRIVER'S SIDE) CONDITION • Remove the front door latch and lock actuator (driver's side). (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.) • Inspect the front door latch and lock actuator (driver's side). (See FRONT DOOR LOCK ACTUATOR INSPECTION.) • Is the front door latch and lock actuator (driver's side) normal?	Yes	Go to the next step.
4		No	Replace the front door latch and lock actuator (driver's side), then go to the final step. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
5	VERIFY BCM CONNECTOR CONDITION • Disconnect the BCM connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
5		No	Repair or replace the connector, then go to the final step.
6	VERIFY WIRING HARNESS BETWEEN FRONT DOOR LATCH AND LOCK ACTUATOR (DRIVER'S SIDE) AND BCM FOR OPEN CIRCUIT • Inspect for continuity between front door latch and lock actuator (driver's side) terminal B and BCM terminal 7I. • Is there continuity?	Yes	Go to the next step.
6		No	Repair or replace the related wiring harness, then go to the final step.
7	VERIFY TROUBLESHOOTING COMPLETED • Connect all the connectors. • Connect the battery cable. • Clear DTCs using the M-MDS (See CLEARING DTC [BCM].) • Close the front driver's door. (Front door latch switch off) • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is DTC B1175:13 displayed?	Yes	Replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
7		No	DTC troubleshooting completed.
