DTC B1176:13 [BCM]

id0902f5340800

Malfunction Location

• Front door latch switch (passenger's side) circuit malfunction

Detection Condition

• Open circuit in wiring harness between front door latch switch in front door latch and lock actuator (passenger's side) and BCM

Possible Causes

• DTC inspection is performed with front door latch switch (passenger's side) on

• Connection malfunction with connector

• Open circuit in wiring harness between front door latch and lock actuator (passenger's side) terminal L and BCM terminal 7M

• Front door latch and lock actuator (passenger's side) malfunction

• BCM malfunction

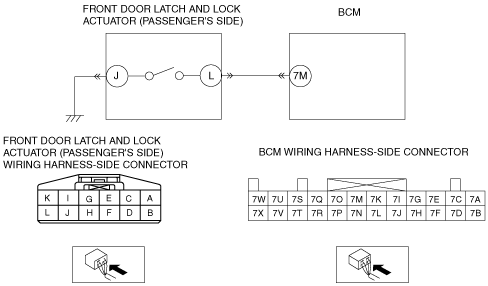

System Wiring Diagram

am2zzw00002303

Diagnostic Procedure

Step

Inspection

Action

1

PERFORM DTC INSPECTION

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Close the front passenger's door. (Front door latch switch off)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is DTC B1176:13 displayed?

Yes

Go to the next step.

No

DTC troubleshooting completed.

2

INSPECT FRONT DOOR LATCH ACTUATOR (PASSENGER'S SIDE) CONNECTOR

•  Disconnect the negative battery cable.

•  Disconnect the front door latch and lock actuator (passenger's side) connector.

•  Verify the connection condition of the front door latch and lock actuator (passenger's side) and the wiring harness.

•  Is the front door latch and lock actuator (passenger's side) connector and wiring harness connection condition normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

3

VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER'S SIDE) GROUND CIRCUIT CONDITION

•  Inspect for continuity between front door latch and lock actuator (passenger's side) terminal J and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the related wiring harness, then go to the final step.

4

VERIFY FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER'S SIDE) CONDITION

•  Remove the front door latch and lock actuator (passenger's side).
(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

•  Inspect the front door latch and lock actuator (passenger's side).
(See FRONT DOOR LOCK ACTUATOR INSPECTION.)

•  Is the front door latch and lock actuator (passenger's side) normal?

Yes

Go to the next step.

No

Replace the front door latch and lock actuator (passenger's side), then go to the final step.

(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

5

VERIFY BCM CONNECTOR CONDITION

•  Disconnect the BCM connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

6

VERIFY WIRING HARNESS BETWEEN FRONT DOOR LATCH AND LOCK ACTUATOR (PASSENGER'S SIDE) AND BCM FOR OPEN CIRCUIT

•  Inspect for continuity between front door latch and lock actuator (passenger's side) terminal L and BCM terminal 7M.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the related wiring harness, then go to the final step.

7

VERIFY TROUBLESHOOTING COMPLETED

•  Connect all the connectors.

•  Connect the battery cable.

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Close the front passenger's door. (Front door latch switch off)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is DTC B1176:13 displayed?

Yes

Replace the BCM.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.
