THEFT-DETERRENT CONTROL MODULE INSPECTION


id091400820900

1.  Remove the following parts:

(1)  Front scuff plate (driver's side)(5HB) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front scuff plate (driver's side)(3HB) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)
(3)  Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
(4)  Shift lever knob (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].)(See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(6)  Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
(7)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
(8)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

2.  Measure the voltage according to the terminal voltage table.

•  If the voltages cannot be verified as indicated in the terminal voltage table, inspect the parts under “Inspection item(s)”.
―  If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the theft-deterrent control module.

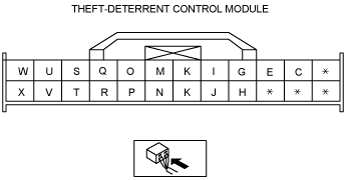

Terminal Voltage Table (Reference)

am2zzw00000596

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item(s)

C
•  Intruder sensor signal
•  Theft-deterrent siren signal
•  Intruder sensor
•  Theft-deterrent siren
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
E
Start knob (push switch)
Steering lock unit (with advanced keyless system)
Start knob is pushed
B+
•  Steering lock unit (with advanced keyless system)
•  Related wiring harnesses
Other
1.0 or less
G
Key reminder switch signal
Key reminder switch (with keyless entry system)
Key inserted
B+
•  Key reminder switch (with keyless entry system)
•   Related wiring harnesses
Key removed
1.0 or less
Push switch signal
Steering lock unit (with advanced keyless system)
Start knob is pressed
B+
•  Steering lock unit (with advanced keyless system)
•   Related wiring harnesses
Start knob is not pressed
1.0 or less
H
Bonnet latch switch signal
Bonnet latch switch
Bonnet open (Bonnet latch switch off)
Inspect using the wave Profile. (See Inspection Using An Oscilloscope (Reference).)
•  Bonnet latch switch
•  Related wiring harnesses
Bonnet closed (Bonnet latch switch on)
1.0 or less
I
CAN_L
-
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
J
GND
Ground
Under any condition
1.0 or less
•  Related wiring harnesses
K
CAN_H
-
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
M
Front door latch switch (passenger's door) signal
Front door latch switch (passenger's door)
Front door (passenger-side) open (Front door switch (passenger' door) off)
Inspect using the wave Profile. (See Inspection Using An Oscilloscope (Reference).)
•  Front door switch (passenger' door)
•  Related wiring harnesses
Front door (passenger's door) closed (Front door switch (passenger's door) on)
1.0 or less
N
Rear door latch switch (RH) signal*1
Rear door latch switch (RH)
Any rear doors open (Rear door switch off)
Inspect using the wave Profile. (See Inspection Using An Oscilloscope (Reference).)
•  Rear door switches
•  Related wiring harnesses
All rear doors closed (Rear door switch on)
1.0 or less
O
Front door latch switch (driver's door) signal
Front door latch switch (driver' door)
Front door (driver' door) open (Front door switch (driver' door) off)
Inspect using the wave Profile. (See Inspection Using An Oscilloscope (Reference).)
•  Front door switch (driver' door)
•  Related wiring harnesses
Front door (driver' door) closed (Front door switch (driver' door) on)
1.0 or less
P
Rear door latch switch (LH) signal*1
Rear door latch switch (LH)
Any rear door open (Rear door switch off)
Inspect using the wave Profile. (See Inspection Using An Oscilloscope (Reference).)
•  Rear door switches
•  Related wiring harnesses
All rear doors closed (Rear door switch on)
1.0 or less
Q
Serial communication
•  Keyless control module (with advanced keyless system)
•  Keyless receiver (with keyless entry system)
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
R
Liftgate latch switch signal
Liftgate latch switch
Liftgate is open. (Liftgate latch switch on)
1.0 or less
•  Liftgate latch switch
•  Related wiring harnesses
Liftgate is closed. (Liftgate latch switch off)
Inspect using the wave Profile. (See Inspection Using An Oscilloscope (Reference).)
S
Security light on/off
Instrument cluster
Security light on
1.0 or less
•  Instrument clustert
•  Related wiring harnesses
Security light off
B+
T
Lock/unlock signal
Door lock link switch
All doors except the driver's door are locked
Inspect using the wave Profile. (See Inspection Using An Oscilloscope (Reference).)
•  Door lock link switch (Except driver's side)
•  Related wiring harnesses
Any door except the driver's door is unlocked
1.0 or less
U
IG 1
METER 10 A fuse
IG ON
B+
•  METER 10 A fuse
•  Ignition switch
•  Related wiring harnesses
IG OFF
1.0 or less
V
Unlock input (Driver's door lock-link switch)
Driver's door lock-link switch
Driver's door locked
Inspect using the wave Profile. (See Inspection Using An Oscilloscope (Reference).)
•  Driver's door lock-link switch
•  Related wiring harnesses
Driver's door unlocked
1.0 or less
W
Power supply
BCM
Under any condition
B+
•  Related wiring harnesses
•  BCM
•  Room 15 A fuse
X
Hazard warning switch signal
BCM
Hazard flash
1.0 or less
•  BCM
•  Related wiring harnesses
Other
5

*1  :5HB

Inspection Using An Oscilloscope (Reference)

am2zzw00003494
•  Oscilloscope setting: 1 V/DIV (Y): 2 ms/DIV (X), DC range
