CENTER PANEL REMOVAL/INSTALLATION

id091700455200

Note

•  For vehicles with the audio unit, refer to the CENTER PANEL UNIT REMOVAL/INSTALLATION. (See CENTER PANEL UNIT REMOVAL/INSTALLATION)

1.  Disconnect the negative battery cable.

2.  Remove the shift lever knob. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R]) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R])

3.  Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION)

4.  Remove the front console component. (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

5.  Remove the screw, pull the center panel in the direction of the arrow shown in the figure, and remove the center panel while detaching the clips A and B. (See Center Panel Removal Note)

L.H.D.

am2zzw00003740

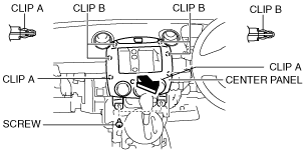

R.H.D.

am2zzw00003741

6.  Disconnect the hazard warning switch connector.

7.  Disconnect the passenger-side seat belt reminder indicator connector. (vehicles with passenger-side seat belt reminder indicator)

8.  Install in the reverse order of removal.

Center Panel Removal Note

1.  When the center panel is removed, clips A could interfere with the climate control unit bracket and cause damage. Pull the center panel in the direction of the arrow shown in the figure (upward at a approx. 20°angle) when removing it.

am2zzw00003262
