FUEL SYSTEM LOCATION INDEX [MZR 1.3, MZR 1.5]

id011417800100

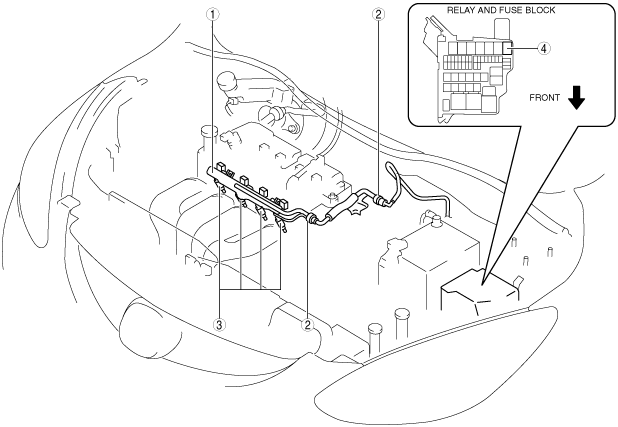

Engine Compartment Side

am2zzw00005228

1	Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
3	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See FUEL INJECTOR INSPECTION [MZR 1.3, MZR 1.5].)
4	Fuel pump relay (See RELAY INSPECTION.)

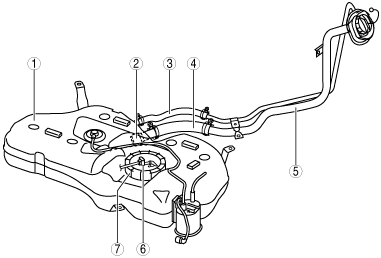

Fuel Tank Side

am2zzw00005229

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See FUEL TANK INSPECTION [MZR 1.3, MZR 1.5].)
2	Non-return valve (See NON-RETURN VALVE INSPECTION [MZR 1.3, MZR 1.5].)
3	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
4	Joint hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
5	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
6	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
7	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [MZR 1.3, MZR 1.5].) (See FUEL PUMP UNIT INSPECTION [MZR 1.3, MZR 1.5].)
