EMISSION SYSTEM LOCATION INDEX [MZR 1.3, MZR 1.5]

id011606803700

Engine Compartment Side

am2zzw00005243

1	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See EGR VALVE INSPECTION [MZR 1.3, MZR 1.5].)
2	Ventilation hose
3	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See PURGE SOLENOID VALVE INSPECTION [MZR 1.3, MZR 1.5].)
4	Positive crankcase ventilation (PCV) valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZR 1.3, MZR 1.5].)

Exhaust System

am2zzw00005244

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

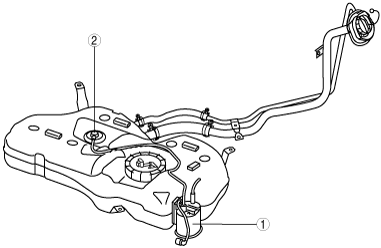

Fuel Tank Side

am2zzw00001585

1	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See CHARCOAL CANISTER INSPECTION [MZR 1.3, MZR 1.5].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See ROLLOVER VALVE INSPECTION [MZR 1.3, MZR 1.5].) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZR 1.3, MZR 1.5].)
