DTC P0708:00 [DJVA-EL]

id050212817200

DTC P0708:00

TR switch open circuit
DETECTION CONDITION
•  Condition: TCM normal during engine rotation
•  Status: Detects no output of TR switch at vehicle speed of 30 km/h {19 mph} or higher
•  Period: Confirmed 15 times in 2 s or more
Diagnostic support note
•  The AT warning light illuminates if the TCM detects the above malfunction condition during the second drive cycle.
•  PENDING CODE is available.
•  The DTC is stored in the TCM memory if the TCM detects the above malfunction condition during the second drive cycle.
POSSIBLE CAUSE
•  TR switch connector or terminal malfunction
•  Short to GND in wiring harness between TR switch terminal G and TCM terminal B20
•  Short to GND in wiring harness between TR switch terminal E and TCM terminal B1
•  Short to GND in wiring harness between TR switch terminal F and TCM terminal B8
•  Short to GND in wiring harness between TR switch terminal D and TCM terminal B7
•  Short to GND in wiring harness between TR switch terminal A and TCM terminal B19
•  Short to power supply in wiring harness between TR switch terminal I and TCM terminal B20
•  Short to power supply in wiring harness between TR switch terminal E and TCM terminal B1
•  Short to power supply in wiring harness between TR switch terminal F and TCM terminal B8
•  Short to power supply in wiring harness between TR switch terminal D and TCM terminal B7
•  Short to power supply in wiring harness between TR switch terminal A and TCM terminal B19
•  TR switch malfunction
•  TCM connector or terminal malfunction
•  Open circuit in wiring harness between TR switch terminal I and TCM terminal B20
•  Open circuit in wiring harness between TR switch terminal E and TCM terminal B1
•  Open circuit in wiring harness between TR switch terminal F and TCM terminal B8
•  Open circuit in wiring harness between TR switch terminal D and TCM terminal B7
•  Open circuit in wiring harness between TR switch terminal A and TCM terminal B19
•  TCM malfunction

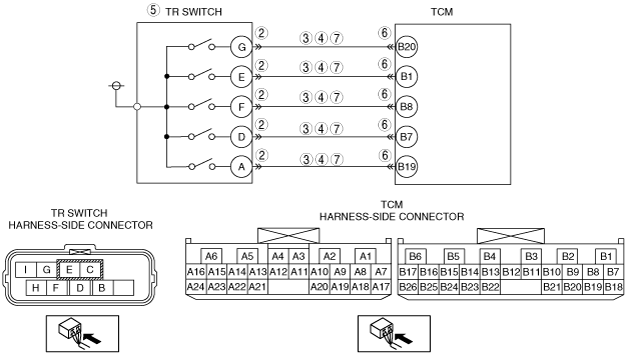

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
•  Verify related service information availability.
•  Is any related repair information available?
Yes
Perform repair or diagnosis according to the available repair information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
2
INSPECT TR SWITCH CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to OFF.
•  Disconnect the TR switch connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion)
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
3
INSPECT TR SWITCH CIRCUIT FOR SHORT TO GND
•  Switch the ignition to OFF.
•  Inspect for continuity between the following circuits:
―  TR switch terminal G (wiring harness-side) and body GND
―  TR switch terminal E (wiring harness-side) and body GND
―  TR switch terminal F (wiring harness-side) and body GND
―  TR switch terminal D (wiring harness-side) and body GND
―  TR switch terminal A (wiring harness-side) and body GND
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to GND, then go to Step 8.
No
Go to the next step.
4
INSPECT TR SWITCH CIRCUIT FOR SHORT TO POWER SUPPLY
•  Switch the ignition to ON (Engine off).
•  Measure the voltage between the following circuits:
―  TR switch terminal G (wiring harness-side) and body GND
―  TR switch terminal E (wiring harness-side) and body GND
―  TR switch terminal F (wiring harness-side) and body GND
―  TR switch terminal D (wiring harness-side) and body GND
―  TR switch terminal A (wiring harness-side) and body GND
•  Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.
No
Go to the next step.
5
INSPECT TR SWITCH
•  Inspect the TR switch.
•  Is there any malfunction?
Yes
Replace the TR switch, then go to Step 8.
(See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION [DJVA-EL].)
No
Go to the next step.
6
INSPECT TCM CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to OFF.
•  Disconnect the TCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion)
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
7
INSPECT TR SWITCH CIRCUIT FOR OPEN CIRCUIT
•  Switch the ignition to OFF.
•  Inspect for continuity between the following circuits:
―  TR switch terminal G (wiring harness-side) and TCM terminal B20 (wiring harness-side)
―  TR switch terminal E (wiring harness-side) and TCM terminal B1 (wiring harness-side)
―  TR switch terminal F (wiring harness-side) and TCM terminal B8 (wiring harness-side)
―  TR switch terminal D (wiring harness-side) and TCM terminal B7 (wiring harness-side)
―  TR switch terminal A (wiring harness-side) and TCM terminal B19 (wiring harness-side)
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
8
VERIFY TROUBLESHOOTING OF DTC P0708:00 COMPLETED
•  Make sure to reconnect all the disconnected connectors.
•  Clear the DTC using the M-MDS.
•  Perform the following procedure to ensure that the DTC has been resolved:
1.  Start the engine.
2.  Vehicle driven 30 s or more at vehicle speed of 30 km/h {19 mph}.
•  Is the same DTC present?
Yes
Perform the following procedure, then go to next step.
1.  Replace the TCM.
2.  Perform TCM learning.
No
Go to the next step.
9
VERIFY NO DTC HAS BEEN PRESENTED
•  Perform the “Reading DTCs Procedure”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [DJVA-EL].)
No
DTC troubleshooting completed.
