DTC P2764:00 [DJVA-EL]

id050212824400

DTC P2764:00

TCC engage solenoid short to GND
DETECTION CONDITION
•  Condition: During signal output from TCC engage solenoid while TCM is normal
•  Status: Detects short to GND in TCC engage solenoid
•  Period: Confirmed 1 time in 0.63 s or more
Diagnostic support note:
•  The AT warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
•  PENDING CODE is not available.
•  The DTC is stored in the TCM memory.
POSSIBLE CAUSE
•  Coupler component connector or terminal malfunction
•  Short to GND in wiring harness between coupler component terminal I and body GND
•  Short to power supply in wiring harness between coupler component terminal I and body GND
•  TCM connector or terminal malfunction
•  Open circuit in wiring harness between coupler component terminal I and TCM terminal A5
•  TCC engage solenoid malfunction
•  TCM malfunction

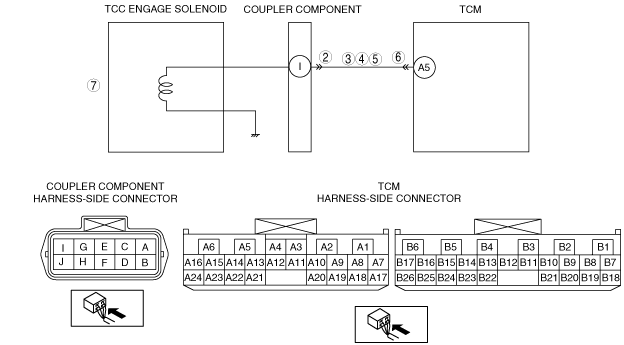

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
•  Verify related service information availability.
•  Is any related repair information available?
Yes
Perform repair or diagnosis according to the available repair information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
2
INSPECT COUPLER COMPONENT CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to OFF.
•  Disconnect the coupler component connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion)
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
3
INSPECT TCC ENGAGE SOLENOID CONTROL CIRCUIT FOR SHORT TO GND
•  Switch the ignition to OFF.
•  Inspect for continuity between the coupler component terminal I (wiring harness-side) and body GND.
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to GND, then go to Step 8.
No
Go to the next step.
4
INSPECT TCC ENGAGE SOLENOID CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY
•  Switch the ignition to ON (engine off).
•  Measure the voltage between the coupler component terminal I (wiring harness-side) and body GND.
•  Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.
No
Go to the next step.
5
INSPECT TCM CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to OFF.
•  Disconnect the TCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion)
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
6
INSPECT TCC ENGAGE SOLENOID CONTROL CIRCUIT FOR OPEN CIRCUIT
•  Switch the ignition to OFF.
•  Inspect for continuity between the coupler component terminal I (wiring harness-side) and PCM terminal A5 (wiring harness-side).
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible open circuit, then go to the Step 8.
No
Go to the next step.
7
INSPECT TCC ENGAGE SOLENOID
•  Inspect the TCC engage solenoid.
•  Is there any malfunction?
Yes
Perform the following procedure, then go to next step.
1.  Replace the CVT.
2.  Perform oil pressure sensor learning.
No
Go to the next step.
8
VERIFY TROUBLESHOOTING OF DTC P2764:00 COMPLETED
•  Make sure to reconnect all the disconnected connectors.
•  Clear the DTC using the M-MDS.
•  Perform the following procedure to ensure that the DTC has been resolved:
1.  Start the engine.
2.  Vehicle driven in D range at speed of 30 km/h {19 mph}.
•  Is the same DTC present?
Yes
Perform the following procedure, then go to next step.
1.  Replace the TCM.
2.  Perform TCM learning.
No
Go to the next step.
9
VERIFY NO DTC HAS BEEN PRESENTED
•  Perform the “Reading DTCs Procedure”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [DJVA-EL].)
No
DTC troubleshooting completed.
