EPS CONTROL MODULE INSPECTION

id061300802400

1.  Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)

2.  Remove the front console component. (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

3.  For L.H.D., remove the front scuff plate (LH) and front side trim (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

4.  For R.H.D., remove the front scuff plate (RH) and front side trim (RH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the bonnet release lever from the lower panel. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

6.  Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)

7.  For L.H.D., remove the heat duct (LH). (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)

8.  For R.H.D., remove the heat duct (RH). (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)

9.  Attach the tester lead to the underside of the EPS CM connector and inspect the voltage according to the terminal voltage table (reference).

Terminal Voltage Table (Reference)

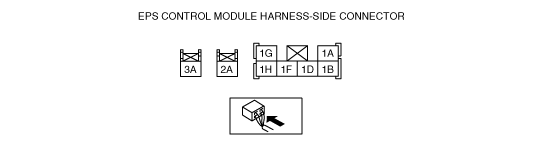

am2zzw00001123

Terminal	Signal name	Input/output	Connected to	Measured item	Measured terminal (measurement condition)	Voltage (V)	Inspection item(s)
1A	—	—	—	—	—	—	—
1B	—	—	—	—	—	—	—
1D	—	—	—	—	—	—	—
1F	Ignition power supply	Input	Ignition switch	Voltage	Ignition switch at ON	B+	•  Wiring harness (1F-ignition switch) •  Fuse (10 A)
					Ignition switch off	1 or less
1G	CAN_H	Input ↔ Output	—	Perform DTC inspection			—
1H	CAN_L	Input ↔ Output	—	Perform DTC inspection			—
2A	Ground	—	Ground point	Voltage	Under any condition	1 or less	•  Wiring harness (2A-ground point)
3A	Battery power supply	Input	Battery	Voltage	Under any condition	B+	•  Wiring harness (3A-battery) •  Fuse (60A)
