DTC B1127:11/B1127:12/B1127:13/B1127:19/B1127:1A

id080200821500

System Malfunction Location

DTC	System Malfunction Location
M-MDS display
B1127:11	Passenger-side side air bag module circuit short to body ground
B1127:12	Passenger-side side air bag module circuit short to power supply
B1127:13	Passenger-side side air bag module circuit open circuit or resistance high
B1127:19	Short circuit to passenger-side side air bag module and other air bag module circuits
B1127:1A	Passenger-side side air bag module circuit resistance low

Detection Condition

Warning

•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

Possible Causes

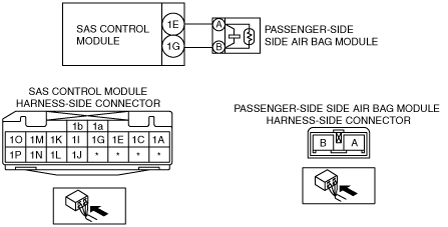

System Wiring Diagram

am2zzw00005588

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT PASSENGER-SIDE SIDE AIR BAG MODULE CONNECTOR Warning •  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.) •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Disconnect the passenger-side side air bag module connector installed to the lower side of the seat cushion of the front seat. •  Inspect the passenger-side side air bag module connector. (Corrosion, damage, and disconnected pins) •  Is there any malfunction of the passenger-side side air bag module connector?	Yes	Replace the passenger-side side air bag module wiring harness.
		No	Go to the next step.
2	INSPECT WIRING HARNESS BETWEEN SAS CONTROL MODULE AND PASSENGER-SIDE SIDE AIR BAG MODULE •  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) •  Disconnect the clock spring connector. •  Remove the glove compartment cover. (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.) •  Disconnect the passenger-side air bag module connector. •  Disconnect the driver-side side air bag module connector. •  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) (See HEADLINER REMOVAL/INSTALLATION [3HB].) •  Disconnect the driver and passenger-side curtain air bag module connectors. •  Disconnect the driver and passenger-side pre-tensioner seat belt connectors. •  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.) •  Disconnect the SAS control module connectors. •  Inspect the wiring harnesses between SAS control module connector terminal 1E and passenger-side side air bag module connector terminal A, and SAS control module connector terminal 1G and passenger-side side air bag module connector terminal B for the following: ―  Short circuit between terminals ―  Short to body ground ―  Open circuit Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and the passenger-side side air bag module. •  Is the wiring harness normal?	Yes	Go to the next step.
		No	Replace the wiring harness between the SAS control module and the passenger-side side air bag module.
3	INSPECT THE WIRING HARNESS BETWEEN THE SAS CONTROL MODULE AND PASSENGER-SIDE SIDE AIR BAG MODULE FOR A SHORT CIRCUIT TO THE POWER SUPPLY •  Connect the negative battery cable. •  Switch the ignition to ON with SAS control module connector and passenger-side side air bag module connector disconnected. •  Measure the voltage of SAS control module connector terminals 1E and 1G. Note •  Measure the voltage while shaking the wiring harness between the SAS control module and the passenger-side side air bag module. •  Is the voltage measured?	Yes	Replace the wiring harness between the SAS control module and the passenger-side side air bag module.
		No	Go to the next step.
4	INSPECT PASSENGER-SIDE SIDE AIR BAG MODULE •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Connect the SST (Fuel and thermometer checker) or apply 2 ohms resistance to the passenger-side side air bag module connector terminals A and B. •  Set the SST (Fuel and thermometer checker) to 2 ohms. •  Except for the passenger-side side air bag module connector, reconnect all disconnected connectors. •  Connect the negative battery cable. •  Switch the ignition to ON. •  Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC.) •  Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC DISPLAY.) •  Are the same DTCs present?	Yes	Go to the next step.
		No	Replace the passenger-side side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
5	PERFORM SAS CONTROL MODULE DTC INSPECTION •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Disconnect the SST (Fuel and thermometer checker) or the 2 ohms resistance. •  Connect the passenger-side side air bag module connector. •  Connect the negative battery cable. •  Switch the ignition to ON. •  Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC.) •  Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC DISPLAY.) •  Are the same DTCs present?	Yes	Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
		No	DTC troubleshooting completed.
