DTC B10FD:11/B10FD:15/B10FD:96

id080200821800

System Malfunction Location

DTC	System Malfunction Location
M-MDS display
B10FD:11	Driver-side side air bag sensor circuit short to body ground
B10FD:15	Driver-side side air bag sensor circuit open circuit or short to power supply
B10FD:96	Driver-side side air bag sensor internal malfunction

Detection Condition

Warning

•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

Possible Causes

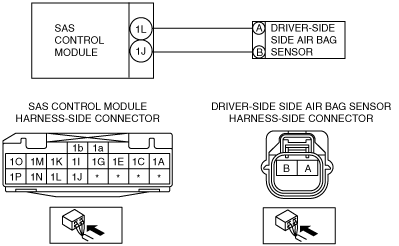

System Wiring Diagram

am2zzw00001238

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR CONNECTOR Warning •  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.) •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Remove the B-pillar lower trim (driver's side). (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) •  Disconnect the driver-side side air bag sensor connector. (See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION.) •  Inspect the driver-side side air bag sensor connector. (Corrosion, damage, and disconnected pins) •  Is there any malfunction of the driver-side side air bag sensor connector?	Yes	Replace the driver-side side air bag sensor wiring harness.
		No	Go to the next step.
2	INSPECT WIRING HARNESS BETWEEN SAS CONTROL MODULE AND DRIVER-SIDE SIDE AIR BAG SENSOR •  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) •  Disconnect the clock spring connector. •  Remove the glove compartment cover. (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.) •  Disconnect the passenger-side air bag module connector. •  Disconnect the driver and passenger-side side air bag module connectors. •  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) (See HEADLINER REMOVAL/INSTALLATION [3HB].) •  Disconnect the driver and passenger-side curtain air bag module connectors. •  Disconnect the driver and passenger-side pre-tensioner seat belt connectors. •  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.) •  Disconnect the SAS control module connectors. •  Inspect the wiring harnesses between SAS control module connector terminal 1L and driver-side side air bag sensor connector terminal A, and SAS control module connector terminal 1J and driver-side side air bag sensor connector terminal B for the following: ―  Short circuit between terminals ―  Short to body ground ―  Open circuit Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and the driver-side side air bag sensor. •  Is the wiring harness normal?	Yes	Go to the next step.
		No	Replace the wiring harness between the SAS control module and the driver-side side air bag sensor.
3	INSPECT THE WIRING HARNESS BETWEEN THE SAS CONTROL MODULE AND DRIVER-SIDE SIDE AIR BAG SENSOR FOR A SHORT CIRCUIT TO THE POWER SUPPLY •  Connect the negative battery cable. •  Switch the ignition to ON with SAS control module connector and driver-side side air bag sensor connector disconnected. •  Measure the voltage of SAS control module connector terminals 1L and 1J. Note •  Measure the voltage while shaking the wiring harness between the SAS control module and the driver-side side air bag sensor. •  Is the voltage measured?	Yes	Replace the wiring harness between the SAS control module and the driver-side side air bag sensor.
		No	Replace the driver-side side air bag sensor, then go to the next step. (See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION.)
4	PERFORM SAS CONTROL MODULE DTC INSPECTION •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Reconnect all disconnected connectors. •  Connect the negative battery cable. •  Switch the ignition to ON. •  Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC.) •  Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC DISPLAY.) •  Are the same DTCs present?	Yes	Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
		No	DTC troubleshooting completed.
