DTC B0001:1C

id080200825100

System Malfunction Location

Detection Condition

Warning

•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

Possible Causes

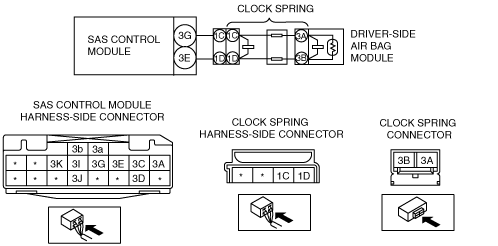

System Wiring Diagram

am2zzw00003781

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT DRIVER-SIDE AIR BAG MODULE CONNECTOR Warning •  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.) •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Remove the driver-side air bag module connector. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) •  Inspect the clock spring connector. (Corrosion, damage, and disconnected pins) •  Is there any malfunction of the clock spring connector?	Yes	Replace the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)
		No	Go to the next step.
2	INSPECT CLOCK SPRING FOR SHORT TO BODY GROUND •  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) •  Remove the clock spring connector. •  Inspect for a continuity between clock spring connector terminal 3A and body ground, clock spring connector terminal 3B and body ground. Note •  Inspect the clock spring wiring harness for continuity while shaking it. •  Is there continuity?	Yes	Replace clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)
		No	Go to the next step.
3	INSPECT CLOCK SPRING FOR SHORT TO POWER SUPPLY •  Connect the negative battery cable. •  Measure the voltage clock spring connector terminal 3A and 3B. Note •  Measure the clock spring wiring harness voltage while shaking it. •  Is the voltage measured?	Yes	Replace clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)
		No	Go to the next step.
4	INSPECT WIRING HARNESS BETWEEN SAS CONTROL MODULE AND CLOCK SPRING •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Remove the glove compartment cover. (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.) •  Disconnect the passenger-side air bag module connector. •  Disconnect the driver and passenger-side side air bag module connectors. •  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) (See HEADLINER REMOVAL/INSTALLATION [3HB].) •  Disconnect the driver and passenger-side curtain air bag module connector. •  Disconnect the driver and passenger-side pre-tensioner seat belt connectors. •  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.) •  Disconnect the SAS control module connectors. •  Inspect for a continuity between SAS control module connector terminal 3E and body ground, SAS control module connector terminal 3G and body ground. Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and clock spring. •  Is there continuity?	Yes	Replace the wiring harness between the SAS control module and clock spring.
		No	Go to the next step.
5	INSPECT THE WIRING HARNESS BETWEEN THE SAS CONTROL MODULE AND CLOCK SPRING FOR A SHORT CIRCUIT TO THE POWER SUPPLY •  Connect the negative battery cable. •  Switch the ignition to ON with SAS control module connector and clock spring disconnected. •  Measure the voltage of SAS control module connector terminals 3E and 3G. Note •  Measure the voltage while shaking the wiring harness between the SAS control module and clock spring. •  Is the voltage measured?	Yes	Replace the wiring harness between the SAS control module and clock spring.
		No	Go to the next step.
6	PERFORM SAS CONTROL MODULE DTC INSPECTION •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Reconnect all disconnected connectors. •  Connect the negative battery cable. •  Switch the ignition to ON. •  Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC.) •  Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC DISPLAY.) •  Are the same DTCs present?	Yes	Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
		No	DTC troubleshooting completed.
