DTC B0072:1C

id080200825300

System Malfunction Location

Detection Condition

Warning

•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

Possible Causes

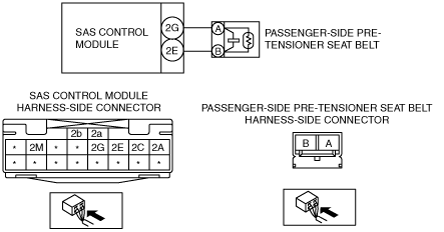

System Wiring Diagram

am2zzw00001234

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT PASSENGER SIDE PRE-TENSIONER SEAT BELT CONNECTOR Warning •  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.) •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Remove the B-pillar lower trim (passenger's side). (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) •  Disconnect the passenger-side pre-tensioner seat belt connector. (See FRONT SEAT BELT REMOVAL/INSTALLATION.) (See FRONT SEAT BELT REMOVAL/INSTALLATION [3HB].) •  Inspect the passenger-side pre-tensioner seat belt connector. (Corrosion, damage, and disconnected pins) •  Is there any malfunction of the passenger-side pre-tensioner seat belt connector?	Yes	Replace the passenger-side pre-tensioner seat belt wiring harness.
		No	Go to the next step.
2	INSPECT WIRING HARNESS BETWEEN SAS CONTROL MODULE AND PASSENGER-SIDE PRE-TENSIONER SEAT BELT FOR SHORT TO BODY GROUND •  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) •  Disconnect the clock spring connector. •  Remove the glove compartment cover. (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.) •  Disconnect the passenger-side air bag module connector. •  Disconnect the driver and passenger-side side air bag module connectors. •  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) (See HEADLINER REMOVAL/INSTALLATION [3HB].) •  Disconnect the driver and passenger-side curtain air bag module connectors. •  Disconnect the driver-side pre-tensioner seat belt connector. •  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.) •  Disconnect the SAS control module connectors. •  Inspect for a continuity between SAS control module connector terminal 2E and body ground, SAS control module connector terminal 2G and body ground. Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and the passenger-side pre-tensioner seat belt. •  Is there continuity?	Yes	Replace the wiring harness between the SAS control module and the passenger-side pre-tensioner seat belt.
		No	Go to the next step.
3	INSPECT THE WIRING HARNESS BETWEEN THE SAS CONTROL MODULE AND PASSENGER-SIDE PRE-TENSIONER SEAT BELT FOR A SHORT CIRCUIT TO THE POWER SUPPLY •  Connect the negative battery cable. •  Switch the ignition to ON with SAS control module connector and passenger-side pre-tensioner seat belt connector disconnected. •  Measure the voltage of SAS control module connector terminals 2E and 2G. Note •  Measure the voltage while shaking the wiring harness between the SAS control module and passenger-side pre-tensioner seat belt. •  Is the voltage measured?	Yes	Replace the wiring harness between the SAS control module and the passenger-side pre-tensioner seat belt.
		No	Go to the next step.
4	PERFORM SAS CONTROL MODULE DTC INSPECTION •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. •  Reconnect all disconnected connectors. •  Connect the negative battery cable. •  Switch the ignition to ON. •  Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC.) •  Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC DISPLAY.) •  Are the same DTCs present?	Yes	Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
		No	DTC troubleshooting completed.
