LIFTGATE HINGE REMOVAL/INSTALLATION

id091100422500

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate (See LIFTGATE REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(4)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(5)  Lower anchor installation bolts on the rear seat belt. (See REAR SEAT BELT REMOVAL/INSTALLATION)

(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(7)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(8)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Peel back the seaming welt to the point indicated by the arrow in the figure.

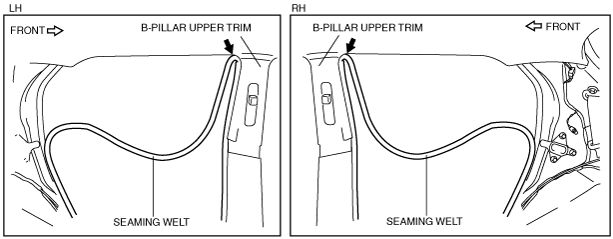

am2zzw00000430

4.  Remove the fasteners on the rear part of the headliner and remove the nut while partially peeling back the headliner.

Note

•  Be careful not to leave a fold-seam.

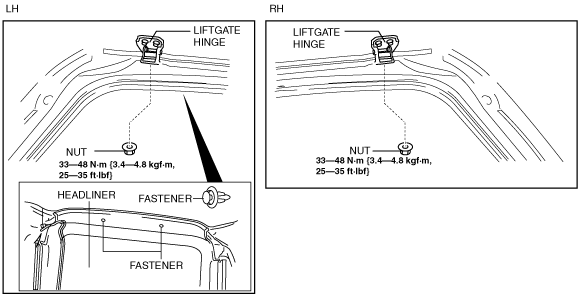

am2zzw00000431

5.  Remove the liftgate hinge.

6.  Install in the reverse order of removal.
