QUARTER WINDOW GLASS REMOVAL [3HB]


id0912008017z3

Warning
•  Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
Warning
•  Using the piano wire with bare hands can cause injury. Always wear gloves when using the piano wire.

1.  Remove the following parts:

(1)  Partially peel back the seaming welt.
(2)  Rear seat cushion (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(3)  Rear seat back (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(4)  Lower anchor installation bolts on the rear seat belt (See REAR SEAT BELT REMOVAL/INSTALLATION [3HB].)
(5)  Trunk end trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [3HB].)
(6)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [3HB].)
(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION [3HB].)
(8)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION [3HB].)

2.  Apply protective tape along the edge of the body and the quarter window glass.

am2zzw00005843

3.  Cut out the sealant all around the glass from inside the vehicle using a sealant remover and the piano wire.

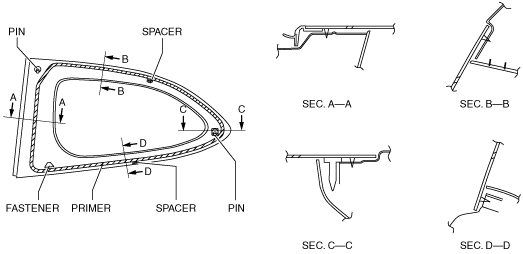

am2zzw00005844

4.  Pull the quarter window glass outward and detach the pins from the body.

Note
•  The pin is a replacement part.
