SHOCK ABSORBING PAD REMOVAL/INSTALLATION [3HB]


id0917004533z3

1.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)
(3)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(4)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(5)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(7)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [3HB].)
(8)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION [3HB].)
(9)  Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(10)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION [3HB].)
(11)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(12)  Rain sensor cover (Vehicles with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)
(13)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(14)  Headliner (See HEADLINER REMOVAL/INSTALLATION [3HB].)

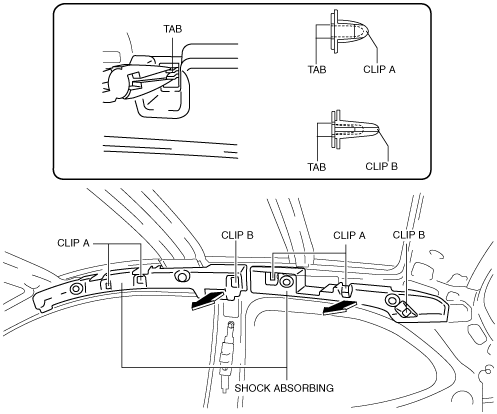

2.  Pinch the tab using pincers, remove clips A and B, then remove the shock-absorbing pad in the direction of the arrow shown in the figure.

am2zzw00003407

3.  Install in the reverse order of removal.
