HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION

id091800464200

L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the switch panel in the direction of the arrow shown in the figure.

am2zzw00006193

3.  Disconnect the connector.

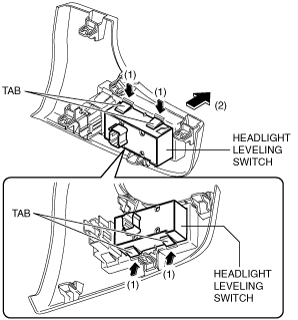

4.  Press the tabs in the direction of the arrow (1) shown in the figure and remove the headlight leveling switch in the direction of the arrow (2).

am2zzw00006189

5.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (driver-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (driver-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)

(4)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(5)  Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

(6)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(7)  Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Press the tabs in the direction of the arrow (1) shown in the figure and remove the headlight leveling switch in the direction of the arrow (2).

am2zzw00006190

4.  Install in the reverse order of removal.
