COOLING SYSTEM [SKYACTIV-X 2.0]

id0112hf002800


Outline

•  A coolant switching valve and electric thermostat have been adopted to quickly warm up the engine.

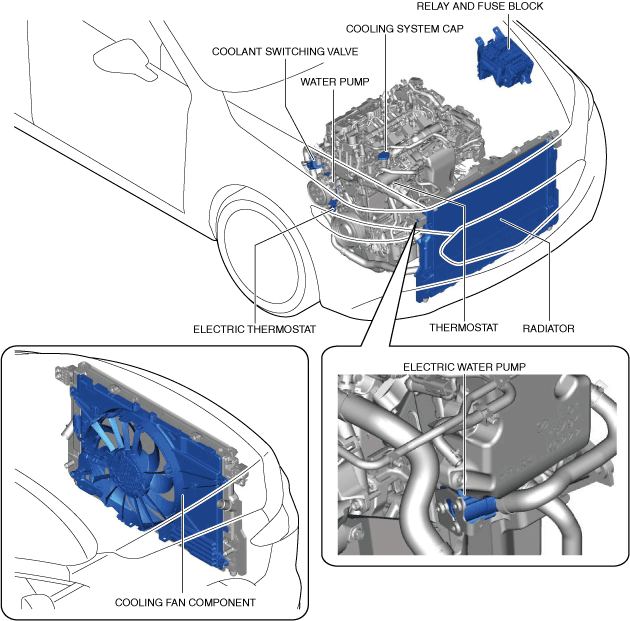

Structural View

atsuzn00000844

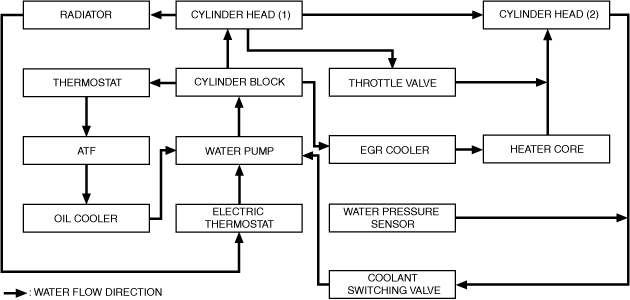

Flow Chart

am3zzn00010136

Structure

•  Consists of the following parts:

Part name

Reference
Radiator
―
Cooling system cap
―
Water pump
―
Thermostat
―
Electric thermostat
(See ELECTRIC THERMOSTAT [SKYACTIV-X 2.0].)
Coolant switching valve
(See COOLANT SWITCHING VALVE (CSV) [SKYACTIV-X 2.0].)
Electric water pump
(See ELECTRIC WATER PUMP [SKYACTIV-X 2.0].)
Cooling fan component
―
Cooling fan relay
―
Fan control module
(See FAN CONTROL MODULE [SKYACTIV-X 2.0].)
