INTAKE-AIR SYSTEM [SKYACTIV-X 2.0]

id0113hf003300

Intake-air System

Outline

•  The following parts have been adopted to achieve the optimum intake air temperature and intake air pressure.

―  Fresh-air duct valve adopted

―  Air bypass valve adopted

•  The following parts have been adopted to achieve compression ignition.

―  Supercharger adopted

―  Supercharger clutch adopted

―  Swirl control valve adopted

―  Water-cooled charge air cooler adopted

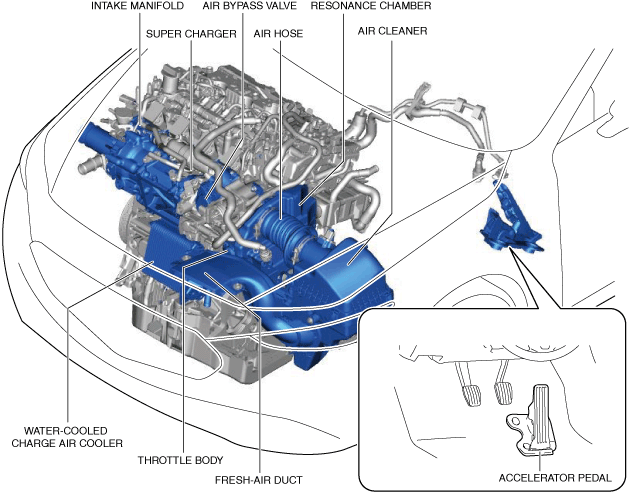

Structural view

atsuzn00000725

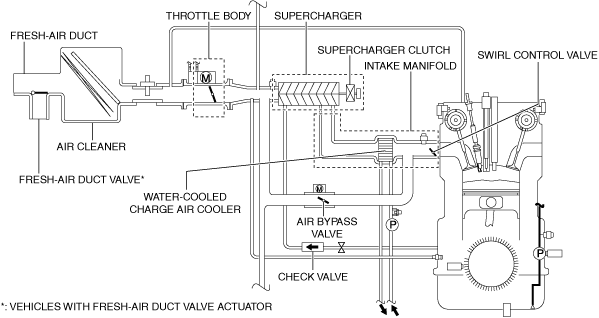

System diagram

ac30zn00001621

Structure

•  The intake air system consists of the following parts:

Part name	Reference
Fresh-air duct	(See Fresh-air Duct.)
Fresh-air duct valve*	(See Fresh-air Duct Valve.)
Fresh-air duct valve actuator*	(See Fresh-air Duct Valve Actuator.)
Resonance chamber	(See Resonance Chamber.)
Air cleaner	―
Throttle body	(See THROTTLE BODY [SKYACTIV-X 2.0].)
Intake manifold	―
Supercharger	(See SUPERCHARGER [SKYACTIV-X 2.0].)
Supercharger clutch	(See SUPERCHARGER CLUTCH [SKYACTIV-X 2.0].)
Swirl control valve	(See SWIRL CONTROL VALVE [SKYACTIV-X 2.0].)
Air bypass valve	(See AIR BYPASS VALVE [SKYACTIV-X 2.0].)
Water-cooled charge air cooler	(See WATER-COOLED CHARGE AIR COOLER [SKYACTIV-X 2.0].)
Check valve	―
Accelerator pedal	(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-X 2.0].)

Fresh-air Duct

Purpose, function

•  Conducts fresh air inside/outside the engine compartment.

•  Adjusts the optimum intake air temperature appropriate for combustion by switching the passage of the intake air port.

Construction

•  The fresh-air duct is installed to the air cleaner.

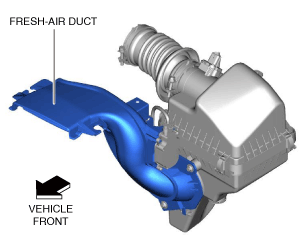

atsuzn00000855

Fresh-air Duct Valve

Purpose, function

•  The fresh-air duct valve conducts warm air in the engine compartment to quickly warm up the engine.

Construction

•  The fresh-air duct valve is built into the fresh-air duct.

atsuzn00000809

Fresh-air Duct Valve Actuator

Purpose, function

•  For the fresh-air duct valve actuator, the optimum intake air temperature has been achieved by opening/closing the 2 fresh-air duct valves.

Construction

•  The fresh-air duct valve actuator is installed to the fresh-air duct.

atsuzn00000809

Operation

•  The fresh-air duct valve actuator sends a signal which fluctuates according to the fresh-air duct valve opening angle to the PCM via LIN communication.

am3zzn00010281

Resonance Chamber

Purpose, function

•  By adopting the hollowed area inside the intake air passage, pulsation of intake air is suppressed and intake air noise is reduced.

Construction

•  The resonance chamber is installed to the air hose.

atsuzn00000856
