CONTROL SYSTEM LOCATION INDEX [SKYACTIV-D 1.8]

id0140s1106300

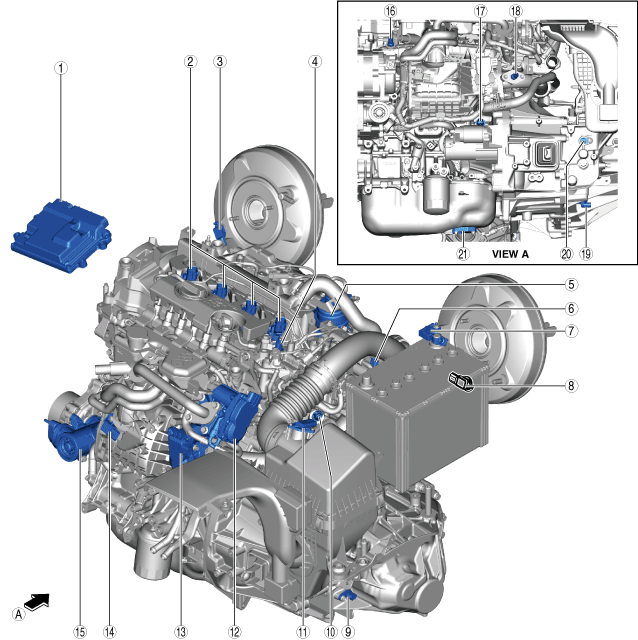

Engine Compartment

am3zzw00031118

1	PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See PCM INSPECTION [SKYACTIV-D 1.8].) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-D 1.8].)
2	Fuel pressure sensor/Fuel temperature sensor (See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-D 1.8].) (See FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See FUEL TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
3	Power brake unit vacuum sensor (R.H.D.) (See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-D 1.8].)
4	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-D 1.8].)
5	ACTUATOR POSITION SENSOR (TURBOCHARGER WITH VARIABLE TURBINE GEOMETRY) (See ACTUATOR POSITION SENSOR (TURBOCHARGER WITH VARIABLE TURBINE GEOMETRY) REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See ACTUATOR POSITION SENSOR (TURBOCHARGER WITH VARIABLE TURBINE GEOMETRY) INSPECTION [SKYACTIV-D 1.8].)
6	Exhaust gas pressure sensor No.1 (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EXHAUST GAS PRESSURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
7	Current sensor (See CURRENT SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See CURRENT SENSOR INSPECTION [SKYACTIV-D 1.8].)
8	Power brake unit vacuum sensor (L.H.D.) (See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-D 1.8].)
9	Neutral sensor No.2 (MTX) (See NEUTRAL SENSOR INSPECTION [SKYACTIV-D 1.8].)
10	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-D 1.8].)
11	MAF sensor/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-D 1.8].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-D 1.8].)
12	HP-EGR control valve position sensor (See HP-EGR CONTROL VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See HP-EGR CONTROL VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 1.8].)
13	Intake shutter valve position sensor (See INTAKE SHUTTER VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See INTAKE SHUTTER VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 1.8].) (See INTAKE SHUTTER VALVE INITIALIZATION [SKYACTIV-D 1.8].)
14	MAP sensor/Boost air temperature sensor (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-D 1.8].) (See BOOST AIR TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
15	Coolant control valve position sensor (See COOLANT CONTROL VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See COOLANT CONTROL VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 1.8].)
16	IAT sensor No.3 (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.3 REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-D 1.8].)
17	Engine oil temperature sensor/Engine oil pressure sensor (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See ENGINE OIL TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8].) (See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
18	IAT sensor No.2 (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-D 1.8].)
19	Revolution sensor (See REVOLUTION SENSOR INSPECTION [SKYACTIV-D 1.8].)
20	Neutral sensor No.1 (MTX) (See NEUTRAL SENSOR INSPECTION [SKYACTIV-D 1.8].)
21	Engine oil level sensor (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-D 1.8].)

Except Engine Compartment

am3zzw00031119

1	Blow-by heater (See BLOW-BY HEATER INSPECTION [SKYACTIV-D 1.8].)
2	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-D 1.8].)
3	Exhaust gas temperature sensor No.2 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
4	Exhaust gas pressure sensor No.2 (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EXHAUST GAS PRESSURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
5	Exhaust gas temperature sensor No.3 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
6	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-D 1.8].)
7	Exhaust gas temperature sensor No.4 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
8	LP-EGR control valve position sensor (See LP-EGR CONTROL VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See LP-EGR CONTROL VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 1.8].)
9	EGR temperature sensor (See EGR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EGR TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
10	NOx sensor (See NOx SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See NOx SENSOR INSPECTION [SKYACTIV-D 1.8].)
11	PM sensor (See PM SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See PM SENSOR INSPECTION [SKYACTIV-D 1.8].)
12	Exhaust shutter valve position sensor (See EXHAUST SHUTTER VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EXHAUST SHUTTER VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 1.8].)
13	Exhaust gas temperature sensor No.1 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8].)
14	i-stop OFF switch (See i-stop OFF SWITCH REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See i-stop OFF SWITCH INSPECTION [SKYACTIV-D 1.8].)
15	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-D 1.8].)
16	Clutch stroke sensor (MTX) (See CLUTCH STROKE SENSOR INSPECTION [SKYACTIV-D 1.8].)
